Apply NowWorksaver CS-694

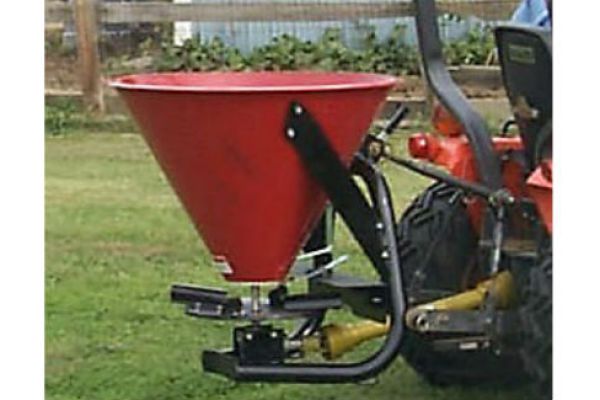

3-PT. PTO Driven Seeder/Spreader CS-694
WWorksaver seeder/spreader models CS-694 and CS-1094 are built for the farmer who requires a quality, economical broadcast seeder/spreader. They easily handle all grass seed, wheat, oats, and fertilizers producing a uniform spread pattern. These models offer three spread patterns: left side only, right side only, or fu... + Read More
Features
The CS-694 and CS-1094 cone seeders feature spun metal hoppers for improved material flow and easy clean-up. An optional wheel type agitator is available for Ag-lime to help reduce its clumping while improving its spread ability.
- Choice of large hopper capacity
- Easy shift lever for directional spread
- Adjustable spinner fans for aggressive or passive spread
- Strong tubular steel main frame
- Heavy duty gearbox
- Fits large Cat. I hitches
- Optional rotating rod and wheel agitator
Specs
Capacity: Six (6) bu. (500 lb.)
Hopper construction: Steel
Main frame construction: Tubular Steel
O.D. size of steel tubing (in/mm): 2-3/8 / (60mm)
Drive system: Tractor PTO
PTO drive-line: Metric Series I
PTO speed: 540 rpm
Fully shield drive: Standard
Spreader drive: PTO / Gear Box
Spreader patterns: Left, Center, Right
Hitch requirement: Cat. I (7/8” Dia. Lift pins)
Shipping weight (lb./kg): 110 / (50 kg)
Product Computer Number: 420700
