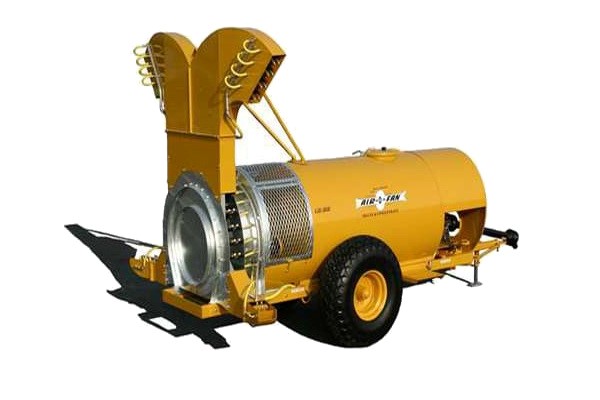

Air-O-Fan Vineyard Sprayers

Whether narrow, wide, steep, tight, rough, big or small, Air-O-Fan has an air-blast sprayer to fit your vine spraying needs.  We manufacture several models with our 2-row vineyard Short Stack attachment & up-spray volutes, this system is designed with three entry points into the vine (as well as three angles of entry) which creates a large amount of turbulent air inside the vine canopy.  This air turbulence is what we use to displace the air out of the vine canopy as well as move leaves, limbs, and bunches about in an aggressive manner to achieve complete coverage.  This system eliminates leaf shingling which is a common issue found with 2-row fan type sprayers (leaf shingling occurs when soft air hits the leaf surface and the leaf covers the grape bunch resulting in poor coverage of the bunch). Our up-spray volutes are designed to spray up under the vine canes which lifts the skirt of the vine allowing for 360 degree coverage of those hard to reach bunches as well as the hard wood. This turbulent air also keeps the vine canopy clean from old dead leaf & cane which can harbor disease and will likely increase the opportunity for a flare-up when the wet season comes.

   Our stainless steel tower top is designed with our patented composite nylon adjustable air vanes for ample control of the air and spray chemical as it leaves the tower assembly, this system is also structurally designed to out-last anything on the market today with rubber mounted double support polls, ribbing, and structural gussets, all in the attempt to keep you in the field without any down-time
or incurred repair costs.  Compact, simple in design, and built to last has made the Air-O-Fan Short Stack models the staple of California vineyard growers located in the central San Joaquin Valley and coastal wine growing regions.  The "short stack" is configured in four different designs suited for 6' to 7', 8' to 9', 10', & 11' to 12' row spacings.

   Our complete vineyard product line is offered in 300, 400, 500, 600, & 1,000 gallon configurations, with both conventional rear suction type fan housings or our "reverse fan" technology which pulls its fresh air from ahead of the air discharge keeping the equipment very clean and eliminating the common chemical recirculation issue found with rear pulling fans.  Our vineyard Volute-Tower has created a
name for itself by producing big performance in a simple, compact, and affordable package.  The V-Tower keeps the air and spray in the vine canopy by transitioning the air parallel to the ground which eliminates spraying up into the atmosphere and keeps costly chemical in the vineyard.   Our steel axial flow fans give us strength over plastic & variable pitch aluminum fans and the ability to produce strong air speed as well as high air volume by eliminating fan deflection under high speed load. Lastly, Air-O-Fan strives to serve our customers, we hold one of the strongest names in the industry for after the sale service and all Air-O-Fan vineyard model lines can all be converted back to a standard orchard sprayer by the removal of just a few nuts and bolts which will increase the value of your sprayer years down the road when you would decide to trade in or sell your sprayer back into the market.

Welcome to Air-O-Fan Products! Coastal Tractor thanks you for your interest and we appreciate the business. We feel honored and blessed to bring you the very best spray application machinery money can buy. Whether it’s spraying 1,000 acres of world class pecan trees with our D-2/45 1,000 or 15 acres of wine-grapes with our Slim Jim 300V, we have a machine that will suit your spraying needs. Our Air-Blast sprayers can cover all your needs from Orchard sprayers, Vineyard sprayers, Herbicide sprayers, PTO sprayers and Engine sprayers. With over 77 years of quality design, engineering, craftsmanship, and service, Air-O-Fan is your spray application machinery specialist. As a family-owned-and-operated business, Air-O-Fan manufactures, services, and provides parts for all its machinery. We also provide a broad dealer network throughout the United States and abroad to ensure that your purchasing and servicing needs are met on a timely basis. Thank you for taking the time to look into our superior product—we appreciate your business!
