Apply NowWorksaver RB-1272

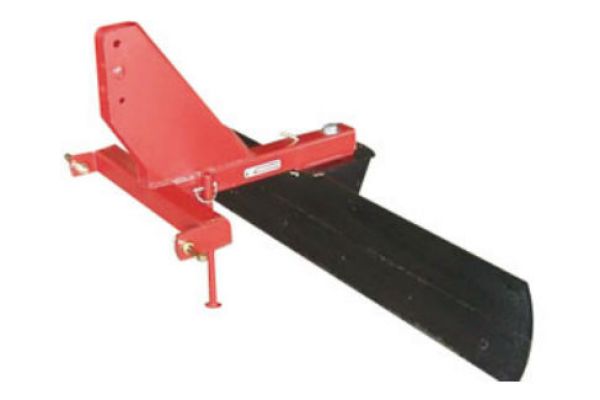

Rear Blades RB Series RB-1272
Designed to fit Cat. I and Cat. I Quick Hitch. These standard duty blades are ideal for the small acreage owner.
Features
Designed for Cat. I or Cat. I Quick Hitch these standard duty blades are ideal for the small acreage owner. The main frame consist of an all welded mast and 3" x 3" square tubing. The RB-Series features mechanical angle adjustment. Angle adjustment is done by simply removing a pin, angling the blade and reinstalling the pin. All models have a reversible cutting edge and are supplied with a parking stand for convenient storage. Available as an option are skid shoes to assist in cutting height adjustment to reduce the chance of surface damage during snow removal.
Specs
Specifications | |
Model: | RB-1272 |
Item No.: | 346705 |
Maximum HP: | 40 hp |
Frame Size: | 3 in. x 3 in. |
A-Frame: | Welded Mast |
3-pt Hitch: | Cat. I |
Moldboard Width: | 6 ft. |
Moldboard Height: | 12 in. |
Moldboard Thickness: | 1/4 in. |
Cutting Edge - Reversible: | 6 in. |
Angle/Pivot: | 360º |
Angle Forward (Degrees): | 0, 15, 30 |
Angle Reverse (Degrees): | 0, 15 |
Offset: | N/A |
Tilt: | N/A |
Parking Stand: | Standard |
Weight (lbs) | 190 |
Optional Items | |
SK-5 Skid Shoes: | 343435 |
