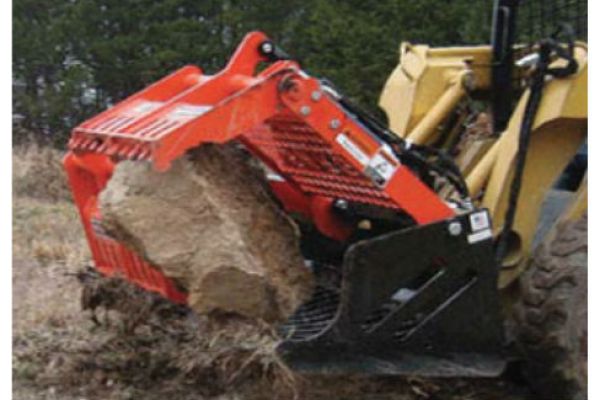

SARG® Sweep Action Rock Grapple SARG-72
Handles rocks and so much more, this is not just another grapple. it is the best grapple you will ever own. Revolutionizing the way rock grapples work, the SARG® (Sweep Action Rock Grapple) from Worksaver makes life easier. With its patent pending design, the SARG allows the operator to sort large or small rocks and ha... + Read More
Features
The front hydraulically controlled grapples with their spring and hinge design operates with a sweeping action to pull rocks and debris into the unit. The springs hold the front sweep rakes open until the rear part of the grapple is down. Then the front rakes pull the material into the bucket. Grapple design retains the rocks or debris, allowing the operator to pivot the attachment to sift loose dirt out. Through the tube hose routing provides protection for the hoses, and flat-face couplers make hook up a breeze. Rocks, brush, logs, stumps, debris or scrap, the SARG handles them all.
Specs
Model | SARG-72 |
Overall Width (in/mm) | 72 / 1829 |
Bucket Depth (in/mm) | 34 / 864 |
Upper Grapple Width (in/mm) | 34 / 864 |
Length of Sweep Clamp (in/mm) | 21 / 533 |
Degrees of Sweep | 66 |
Grapple Opening (in/mm) | 45 / 1143 |
Cylinder Size (in/mm) | 2 x 14 / 51 x 356 |
Tine Diameter (in/mm) | 1.25 / 31.75 |
Removable End Plates | Standard |
Bolt On Cutting Edge | N/A |
Mount Type | "Universal Skid Steer" |
Weight (lbs/kg) | 1194 / 542 |
Product No. | 812120 |
