Apply NowWorksaver ETG-26

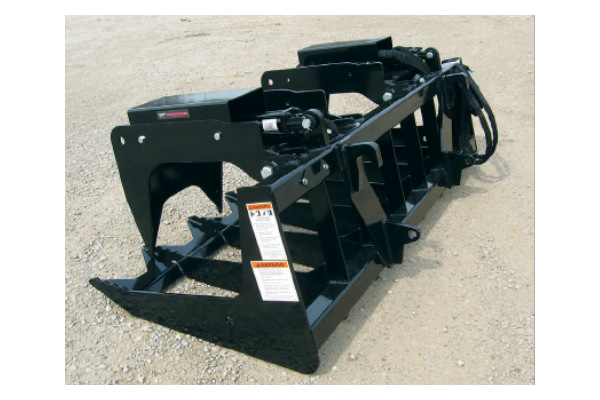

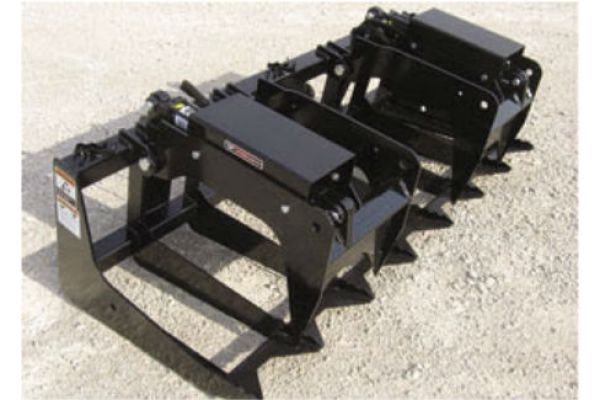

ETG Series Tine Grapple ETG-26
These tough, reliable and economical grapples offer models with skid steer style hook-up, John Deere 400/500 hook-up as well as a model for Euro/Global hook-up. Select models offer dual upper clamps for additional clamping. These grapples are ideal for raking, piling, and loading brush and other hard to handle material... + Read More
Features
- Unique upper grapple design on single clamp units provides clamping force to hold material securely.
- Recommended power unit size 30-55 hp.
- Greaseable pivot points on upper grapple(s) for long service life.
- Low profile design offers great forward visibility.
- Shield plate on upper grapple provides protection for hydraulic cylinder(s).
- Hoses are routed through the tube to provide hose protection on the ETG-26 models.
- ETG-26 with dual upper grapples for additional clamping is offered with Skid Steer mount, Euro/Global mount and John Deere 400/500 mount.
Specs
| Model | ETG-26 |
| Overall Width (in/mm) | 71.75 / 1822 |
| Overall Depth (in/mm) | 35.5 / 901 |
| Inside Depth (in/mm) | 28.5 / 724 |
| Overall Height (in/mm) | 25.5 / 648 |
| Grapple Opening (in/mm) | 34 / 864 |
| Upper Grapple Width (in/mm) | 20 / 508 |
| Number of Upper Grapples | 2 |
| Number of Tines | 8 |
| Tine Spacing (in/mm) | 10 / 254 |
| Cylinder Pressure Rating (psi/bar) | 3000 / 207 |
| Mounting Type | Universal Skid Steer |
| Weight (lbs/kg) | 525 / 238 |
| Horsepower Range | 30 - 55 HP |
| Product Item No. | 811090 |
