Apply NowWorksaver SS-590

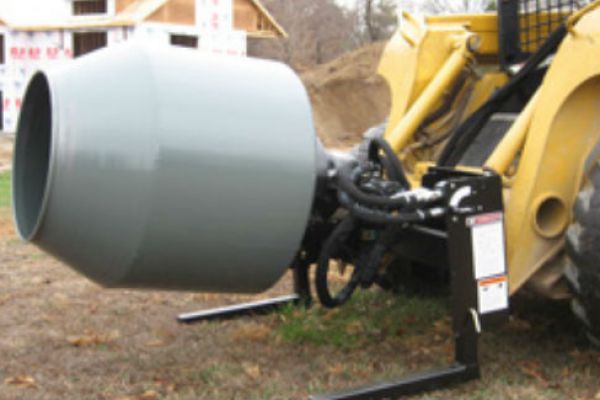

Hydraulic Concrete Mixer SS-590
Worksaver’s Skid Steer Mixer, model SS-590 has direct hydraulic drive of the gearbox which eliminates chain and sprocket maintenance resulting in more up-time on the job-site. Large 11-cubic ft. drum allows the operator to mix, transport and place 5-cubic ft. of concrete. It’s efficient design offers the contractor a c... + Read More
Features
- All welded drum construction with internal paddles for uniform mixing and clean dumping.
- Compact, trouble free, long life design with few moving parts.
- Hydraulic motor drive for easy operation and low maintenance requirements.
- Five (5) cu./ft. capacity (1 bag mix).
- Perfect for fence posts, footings, sidewalls and hard to reach areas.
- Direct gearbox drive of drum.
- Welded main frame with “universal” skid steer mount allows easy access to the operators seat.
- Flow control valve allows easy control of speed of the mixer.
- All welded frame with store onboard parking stands for easy storage of the mixer when not in use.
Specs
SS-590 Specifications |
|
| Capacity: | Five (5) cu./ft. (1 bag mix) |
| Drum opening (in/cm): | 20 / 51 |
| Overall drum length (in/cm): | 32 / 81 |
| Drum construction: | Welded Steel |
| Drive system: | Hydraulic Direct thru Gearbox |
| Hydraulic Requirements: | Minimum 8 GPM |
| Hitch Requirements: | N/A |
| Drive ratio: | 3.18:1 |
| Shield PTO drive: | N/A |
| Flow Control Valve: | Standard |
| Connect Under Pressure Couplers: | Standard |
| Parking stands: | Standard |
| Shipping weight (lb./kg) | 395 / 180 |
| Product No: | 780950 |
