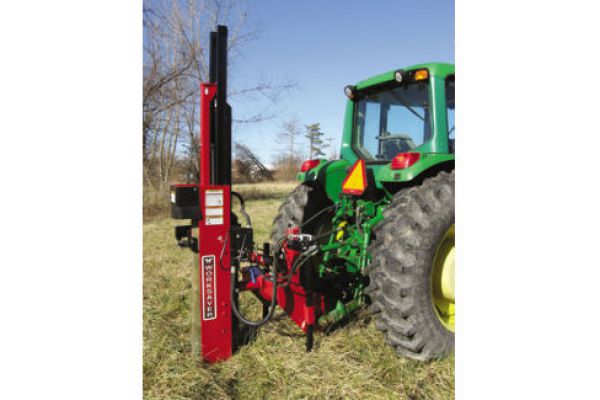

HPD-16/22Q/26Q SHC Hydraulic Adjust, 3-pt. Hydraulic Post Drivers HPD-26Q SHC
Our heavy duty HPD-26Q SHC is available for tough soil conditions.
Features
Designed and engineered for those who have serious fencing to do. These center mounted units offer all the quality features of the basic HPD-16 & HPD-22Q plus effortless hydraulic driver alignment controlled by two 3” x 6” hydraulic cylinders. For increased driving force, the heavyduty HPD-26Q SHC delivers 110,000 lbs. of high-impact force for driving large posts in tough soil conditions. Big-foot stabilizer helps control tractor bounce on these larger units.
Specs
| Model | HPD-26Q SHC |
| Max. Post Size | 11” x 10’ |
| Impact at Full Stroke | 110,000 lbs. |
| Impact at Half Stroke | 55,000 lbs. |
| Mount Type | 3-pt Cat II |
| Tilt Adj. Front/Back | 17° each way |
| Tilt Adj. Side/Side | 20° each way |
| Manual Adjust | No |
| Hydraulic Adjust | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” |
| Stabilizer Legs | Standard |
| Big Foot | Yes |
| Slide Blocks Material | UHMW* |
| Spring Post Holder | Standard |
| Min. Tractor Size | 50-55 hp |
| Rear Hitch Category | Cat. II |
| Min. Hydraulic Req. | 12 GPM |
| QuickChange Rod Seal | Yes |
| Q-springs | Yes |
| Valve(s) | Sgl./Dbl. Spool |
| Hoses less couplers | Standard |
| Weight (lbs.) | 1215 |
| Product Number | 815345 |
