Apply NowWorksaver FSO-906

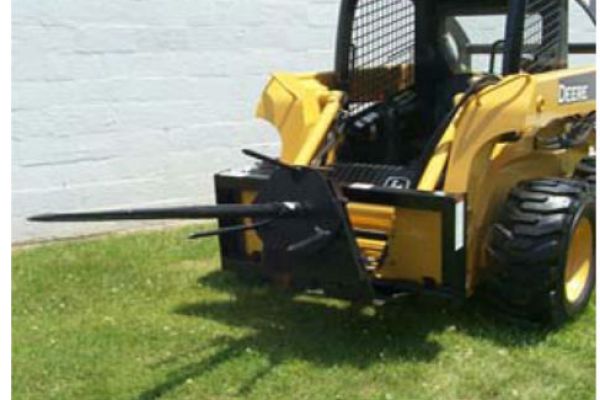

Bale Spin-Off FSO-906
Designed as an efficient hay management tool for moving and feeding round bales. The Spin Off hydraulically rotates the bale, unwinding the hay in to a windrow.
Features
- Eliminate wasted hay; only unroll what cattle will clean up in an hour.
- Almost no manure buildup; by feeding in a different location each day.
- Easy operation from the cab of the tractor or Skid Steer.
- Models for 3-pt, Front Loaders & Skid Steers.
- Hydraulically driven for better operator control.
- Rotates in both directions for easy feeding.
- Cushion valve in the motor provides protection for hydraulic components.
- Forged tapered spear for easier spear penetration.
Specs
| Model | FSO-906 |
| Item No. | 831000 |
| Frame Size | 4" x 4" Sq. Tubing |
| Spear | Tapered Forged |
| Drive | |
| Attaching Method | 3-pt Cat. II/III** |
| Chain Type | #50 Roller Chain |
| Sprocket Ratio | 3.75:1 |
| Hydraulics | |
| GPM - Requirements | 8-10 GPM |
| PSI - Requirements | Min. 1500 psi |
| Hoses | Supplied (2) Less Ends |
| Cushion Valve | |
| Factory Setting - Relief | 1750 psi |
| Dimensions | |
| Height | 26¾" |
| Width | 44¾" |
| Length w/Spear | 64¾" |
| Weight | 250 lbs |
* Optional interfacing brackets for most loader quick attach systems are available
** Optional pin & bushing kit available to allow use on Cat. I 3-pt hitch.
