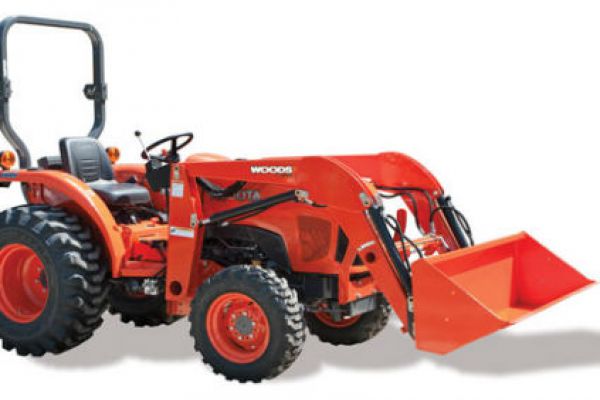

Apply NowWoods LS96R
LS LS96R
LS-Series Rigid Mount Loader
Ideal for homeowners and landscapers needing economy loaders on their compact tractors.
Features
- Tractor HP range: 20-35 hp
- 96-inch maximum lift height
- Rigid mount loader
- Greasable end hardened pins with bushings
- Optional Skid Steer Quick Attach system available
- Available in orange or black
Specs
| Recommended tractor horsepower | 20-35 hp |
| Maximum lift height | 96" |
| Clearance with Attachment Dumped | 79" |
| Lift Cylinder Size | 1.77" |
| Bucket Cylinder Size | 1.77" |
| Lift Capacity at Bucket Pins | 1,175 lbs |
| Lift Capacity 19.7" Ahead of Bucket Pins | 850 lbs |
| Breakout Capacity at Bucket Pins | 2,175 lbs |
| Breakout Capacity 19.7" Ahead of Bucket Pins | 1,650 lbs |
| Working width | 3.5" |
| Maximum Dump Angle | 41° |
| Maximum Roll-back Angle | 24° |
| Reach at maximum height | 17.3" |
| System Pressure for Capacity Ratings | 2350 psi |
| Pivot Pin Diameter | 1.00" |
| Number of Bucket Cylinders | 1 |
| Bucket widths | 60" |
| Bucket Heaped Capacity (cu. ft.) | 8.4 cu. ft. |
| Skid Steer Quick Attach | Optional |
