Apply NowWoods HLSG78
Scrap Grapples HLSG78

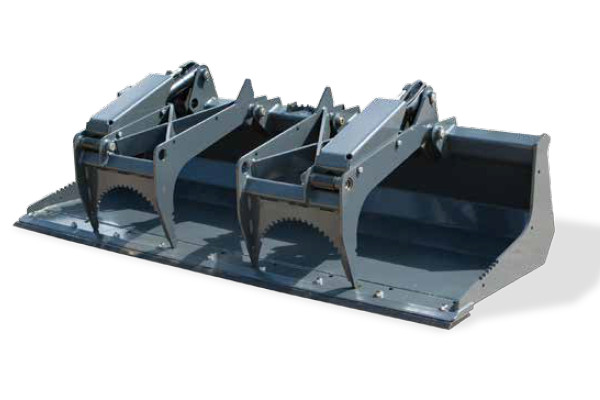

The Woods Alitec Scrap Grapple is ideal for cleaning up construction, demolition and storm debris.
Features
- 78-inch working width
- Moves bulky, hard-to-handle materials easily
- Twin hydraulic cylinders allow for independent clamping on uneven material
- Single, beveled reversible bolt-on cutting edge with back-up bar
- Standard cylinder guards
- Optional bolt-on, double beveled edge and optional end plate extensions
- Skid steer or ISO Quick Attach available
- Skid steer sizes – Class 5 – 8 (1,351 – 2,700 lbs.)
Specs
| Ag Tractor Sizes (hp) | 45-100 (up to 10,000 lbs.) |
| Overall Width | 78" |
| Approximate Operating Weight | 873 lbs. |
| Length (depth) | 35" |
| Height | 27" |
| Heaped Capacity | 18.1 ft³ |
| Grapple Opening | 39" |
| Grapple Width | 19" |
| Cylinder Bore | 2.76" |
| Cylinder Rod | 1.38" |
| Pivot Pins | 1.25" |
| Greasable Pivots | Yes |
| Cutting Edge | Single, beveled bolt-on reversible edge |
| Hose Protection | Yes (sleeve and internal routing) |
| Options | Hydraulic pressure protection, end plate extensions |
