Apply NowWoods LPSB84

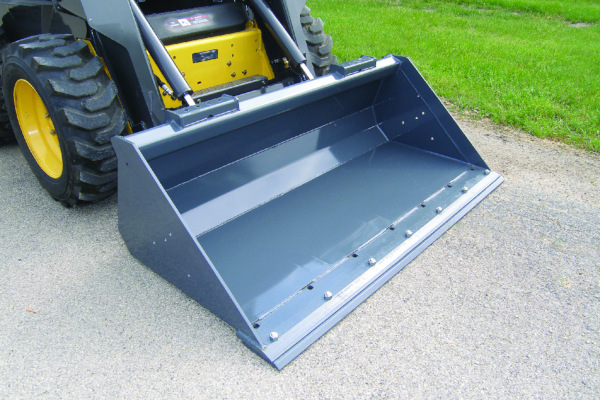

General Purpose Buckets LPSB84
LPSB Series, Low Profile, Short Bottom Bucket
Rounded moldboard gives you maximum loading and unloading and a square back design eases reverse grading. Options include a bolt-on reversible cutting edge, bolt-on 156
series Fabco® or 23 series Hensley® teeth, and bolt-on standard-duty toothbars.
Features
- 84-inch width
- Low profile, short bottom construction bucket
- Shortened bottom for increased bucket breakout force
- Universal skid steer hitch per SAE J2513
- Square back design for easy reverse grading
- Rounded moldboard for maximum loading and unloading
- High-strength torque and hitch components to resist bucket twist, even in the worst conditions
Specs
| Working Width (in) |
84 |
|---|---|
| Approximate Operating Weight (lbs) |
536 |
| Length (depth) (in) |
34 |
| Height (in) |
19.9 |
| Heaped Capacity (cu ft) |
16.9 |
| Struck Capacity (cu ft) |
14.1 |
| Options |
Optional bolt-on reversible cutting edge, bolt-on series Fabco® or 23 series Hensley® teeth, and bolt-on standard duty toothbar |
