Apply NowWoods LPLB73

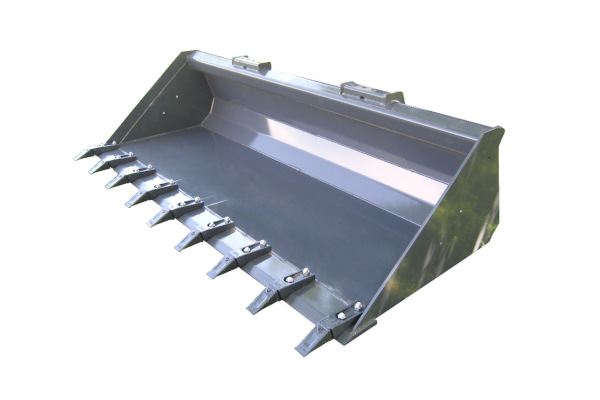

General Purpose Buckets LPLB73
LPLB Series, Low Profile, Long Bottom Bucket
Rounded moldboard gives you maximum loading and unloading and a longer bottom improves your visibility. Options include a bolt-on reversible cutting edge, bolt-on 156 series Fabco® or 23 series Hensley® teeth, and bolt-on standard-duty toothbars.
Features
- 73-inch width
- Low profile, long bottom construction bucket
- Longer bottom for improved operator visibility
- Universal skid steer hitch per SAE J2513
- Square back design for easy reverse grading
- Rounded moldboard for maximum loading and unloading
- High-strength torque and hitch components to resist bucket twist, even in the worst conditions
Specs
| Working Width (in) |
73 |
|---|---|
| Approximate Operating Weight (lbs) |
499 |
| Length (depth) (in) |
39.5 |
| Height (in) |
19.9 |
| Heaped Capacity (cu ft) |
17.7 |
| Struck Capacity (cu ft) |
14.8 |
| Options |
Optional bolt-on reversible cutting edge, bolt-on series Fabco® or 23 series Hensley® teeth, and bolt-on standard duty toothbar |
