Apply NowUnverferth 332 w/Conv. Strip Builder

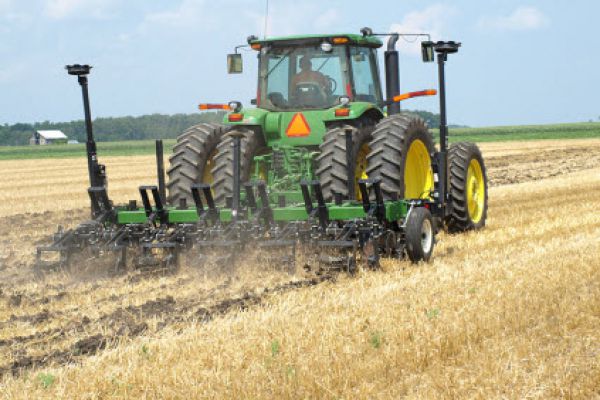

Ripper-Stripper® Strip-Till Subsoiler 332 w/Conv. Strip Builder
Tillage serves three primary purposes: 1. Create a seedbed that warms quickly, 2. Provide optimum seed-to-soil contact for enhanced germination and vigorous early plant growth, and 3. Make it easy for plant roots, moisture and nutrients to move freely throughout the soil.
The Ripper-Stripper® strip-tillage tool from... + Read More
Features
- Model 332 features Automatic-reset shanks that reset on the go for more time-efficient field operations
- Shanks trip rearward and upward from a single pivot point, reducing rocks and other in-field obstacles to minor inconveniences, and trip pressure of 6,000 pounds per shank ensures a constant working depth
- Model 312 is equipped with shear bolt-protected shanks with a shear pressure of 7,500 pounds for use in lighter, obstruction-free fields
- Stabilizer wheels with new stubble-resistant tires for enhanced depth control and in-field stability
- Parking stands to facilitate storage and hookup are standard
- Standard 3-point connections fit category II quick hitch and category III standard, quick and narrow hitches
- Adaptor kits for standard category II hitches are also available
- Available with your choice of a high-gloss, powder-coat finish of tractor red or green
- Customize Tillage Shank Attachment Options:
- Strip-Builder with Rolling Harrow Basket - Create up to a 15" fully tilled strip of soil ready for planting with two adjustable coulters and 15" wide Rolling Harrow basket
- Strip-Builder with Zone Firmer - Ideal for creating up to a 17" fully tilled and firmed strip of soil
- Strip Builder with notched blades and concave baskets creates up to a 15" fully tilled and firmed strip of soil. Features dual adjustable notched blades that resist soil buildup and 15" wide concave Rolling Harrow basket for building a small mound of soil
- Strip-Builder with concave blades and baskets creates up to a 15" fully tilled strip of mounded soil for planting. Dual adjustable smooth concave blades and 15" wide concave baskets work the soil
- Zone-Firmer with lead angled press wheels and 4 section trailing press wheel is ideal for closing and leveling the soil 17" wide behind the shank's path
- Zone-Firmer with 3-section press wheel - Good for leveling and firming the soil with a 13" wide strip behind the shank
- Strip-Builder - Width and angle adjustable coulters create up to 15" tilled strips of soil and close the shank's path
Specs
| Description | Stabilizer Tire Size | Transport Width/Height |
Model 332 w/Conv. Strip Builder Appx. Weight (lbs.) |
|
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice. |
|||
| 2-Row, 36" Spacing - Rigid | 7.60x15 8-ply | 10' | 2,800 |
| 2-Row, 38" Spacing - Rigid | 7.60x15 8-ply | 11'4" | 2,800 |
| 2-Row, 40" Spacing - Rigid | 7.60x15 8-ply | 11'4" | 2,900 |
| 4-Row, 30" Spacing - Rigid | 7.60x15 8-ply | 11'4" | 3760 |
| 4-Row, 36" Spacing - Rigid | 7.60x15 8-ply | 13'9" | 3900 |
| 4-Row, 38" Spacing - Rigid | 7.60x15 8-ply | 13'9" | 3900 |
| 4-Row, 40" Spacing - Rigid | 7.60x15 8-ply | 13'9" | 3900 |
| 6-Row, 30" Spacing - Rigid | 7.60x15 8-ply | 16'6" | 5305 |
| 6-Row, 36" Spacing - Rigid | 7.60x15 8-ply | 19'5" | 5525 |
| 6-Row, 38" Spacing - Rigid | 7.60x15 8-ply | 19'5" | 5525 |
| 6-Row, 36" Spacing - Folding | 9.5Lx15 8-ply | 16' / 7' | 6450 |
| 6-Row, 38" Spacing - Folding | 9.5Lx15 8-ply | 16' / 7' | 6450 |
| 8-Row, 30" Spacing - Rigid | 7.60x15 8-ply | 21'10" | 6655 |
| 8-Row, 30" Spacing - Folding | 9.5Lx15 8-ply | 15'6" / 7" | 7690 |
| 8-Row, 36" Spacing - Folding | 9.5Lx15 8-ply | 16'6" / 9'8" | 8075 |
| 8-Row, 38" Spacing - Folding | 9.5Lx15 8-ply | 16'6" / 9'8" | 8075 |
| 8-Row, 40" Spacing - Folding | 9.5Lx15 8-ply | 15'6" / 10'2" | 8075 |
| 12-Row, 30" Spacing - Folding | 12.5Lx15 10-ply | 15'6" / 12'4" | 10,725 |
| 12-Row, 36" Spacing - Folding | 12.5Lx15 10-ply | 20'10" / 11'9" | 12,040 |
| 12-Row, 38" Spacing - Folding | 12.5Lx15 10-ply | 20'3" / 12'7" | 12,040 |
| 12-Row, 40" Spacing - Folding | 12.5Lx15 10-ply | 19'8" / 13'4" | 12,110 |
| 16-Row, 30" Spacing - Folding | 12.5Lx15 10-ply | 19'8" / 13'4" | 14,555 |
Accessories and Attachments
- Till and plant in one pass with planter lift-assist packages that include mounting arms and lift-assist wheels to connect to your planter for more easily raising and lowering the integrated unit. An available weight transfer kit for 12-row wide models provides added lift and stability
- Floating planter mounting arms are available to connect 3-pt., 4 and 6-row planters to your Ripper-Stripper tool for one-pass planting
- A lift-assist package for 3-pt., 8- 12, and 16-row Ripper-Stripper models is also available
- Shear-bolt protected row markers with notched blades penetrate soil to leave a highly visible mark in a variety of soil types, residue and terrain
- Markers for folding models are either bi- or tri-folding for compact transport
- The model 500 3-Pt. pull-type caddy with dual wheels and adjustable hitch height is available for up to 8-shank folding models
- The model 300 3-Pt. pull-type caddy is available for units up to 6 shanks
- A bolt-on pull-type hitch package is available for 6-, 8- and 12-row models, and it's easily mounted at the 3-point hitch connector with the transport wheels positioned behind the mainframe for greater implement stability and control
- For additional tillage shattering actions, wings can be mounted near the shank's points and are angle adjustable for customizing to your tillage needs
- Optional shank protectors enhance shank durability and are available in either plastic or steel styles
- Liquid fertilizer injectors mount to the rear of the shank add greater one-pass planting benefits and shank protection. Depth adjustable to meet your tillage requirements
- Dry fertilizer shank attachments feature shank protector plates and left and right hand mounting and are depth adjustable
- Rear-mounted adjustable-length pull hitch for towing fertilizer carriers behind the unit is also available. An optional hydraulic hitch height control eases towing concerns
