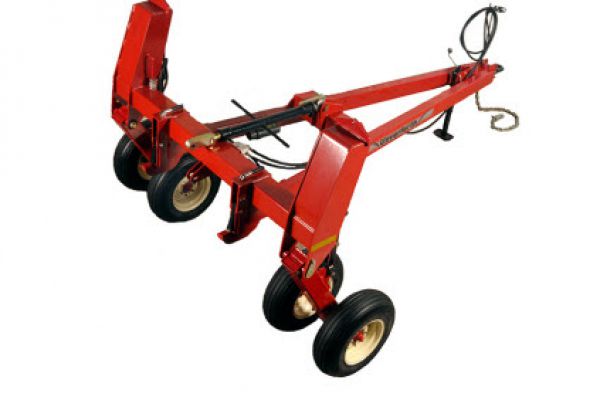

Unverferth 300

Choose from the model 300, 500 or 700 3pt. implement caddy.

• The Model 300 fits up to a 6-shank Unverferth ripper or up to 9,000 lbs. of lift capacity
• The Model 500 fits up to a 9-shank Unverferth ripper or up to 13,000 lbs. of lift capacity
• The Model 700 lifts up to a 16-shank Unverferth ripper or up to 25,000 lbs. of lift capacity
• Models 500 and 300 feature:
  • Pull-through design with a fully welded 4” x 8” tubular steel frame
  • 6”x 6” tubular steel axle arms for enhanced durability
  • Dual wheels with 12.5 x 15 tires for greater flotation and transport stability
  • More than 34 inches of vertical-lift travel for transport clearance
  • Cat. 3 lower quick hitch with auto-latch; top quick link standard on model 500 and optional on 300
• Model 700 features:
  • Parallel axle lift arms for level, uniform lifting with up to 30" of clearance
  • Oscillating dual wheels for enhanced transport stability
  • Pull-through design with a fully welded 4” x 10” tubular steel frame
  • Rear-mounted hydraulics for easily supplying the tillage tool
  • Available with Cat. 4 narrow hitch attachment
• All models feature:
  • Adjustable top quick-link for easily leveling the implement
  • Adjustable tongue height with combination clevis or single-tang hitch for easily matching your tractor
  • Standard transport chain
