Apply NowRhino 3150

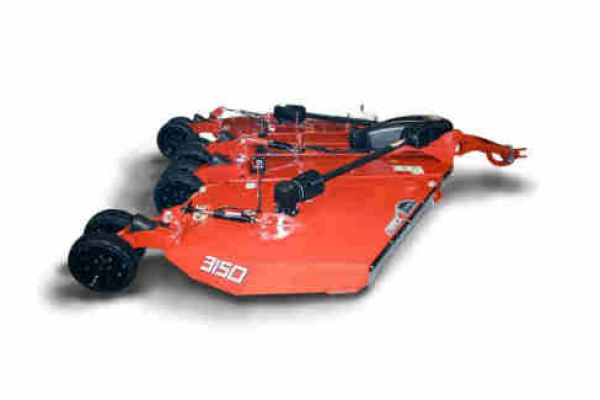

3000 'Apex' Series 3150
Versatility and durability at an incredible price!
The 3000 or “Apex” Series Flex-Wing Cutters use a ½” x 4” blade to make quick work of grass and brush up to 3” in diameter. These smaller cutters only require 50 horsepower from your tractor, so this is the unit for everyone from a full-time rancher to a weekend hob... + Read More
Features
- Low Horsepower Requirement
- Slip-Clutch Protection
- Hydraulic Wing Lift, Safety-Tow Chains, LED Light Kits Come Standard
- 4 Optional Wheel Configurations
Specs
| Model | 3150 |
| Cutting Width | 180'' |
| Transport Width * | 96'' |
| Transport Height * | 80'' |
| Overall Width * | 187'' |
| Overall Length * | 176'' |
| Cutting Height * | 2''-14'' |
| Height Adjustment | Hydraulic Cylinder |
| Jack Stand | Standard |
| Hitch | Pull |
| Blade Carrier | Infinity |
| Blades | 1/2'' x 4'' Parallel Lift |
| Blade Overlap | 6'' |
| PTO Horsepower Required | 50 HP |
| Gearbox Rating ** - Divider | 160 HP |
| Gearbox Rating ** - Center and Wing | 130 HP |
| Gearbox Oil - 85W-140 | Factory Filled |
| Output Shaft Diameter | 2'' |
| Blade Tip Speed - Center 540 RPM | 14,861 FPM |
| Blade Tip Speed - Center 1000 RPM | 15,570 FPM |
| Blade Tip Speed - Wing 540 RPM | 14,861 FPM |
| Blade Tip Speed - Wing 1000 RPM | 15,776 FPM |
| Cutting Capacity | 3'' |
| Driveline Size - Main | Cat 5 CV |
| Driveline Size - Wing | Cat 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 GA |
| Side Skirt | 1/4'' |
| Tires and Wheels | See Options |
| Wing Lift Hydraulics | Standard |
| Wing Flex (Degrees) | 90 degrees Up/25 degrees Down |
| Safety Tow Chain | Standard |
| LED Light Kit | Standard |
| Safety Deflectors | Rubber Deflectors or Chain Guard |
| Tongue Weight | 1,610 lbs. |
| Weight (Approx.) | 5,190 lbs. |
* Dependent on Tire Size
** Gearbox Ratings Based on Field Performance
