Apply NowRhino 950 Blade

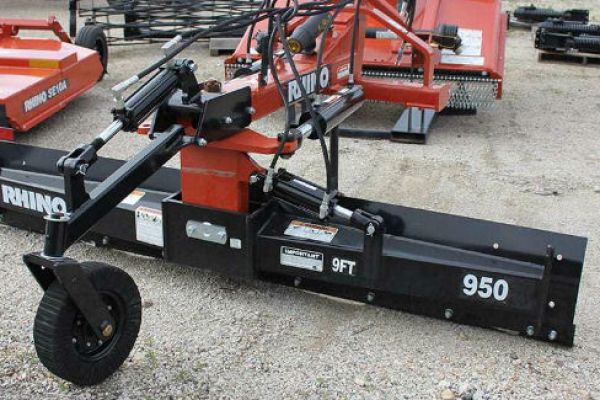

Heavy Duty Rear Blades 950 Blade
The 950 blade (2WD, 125 PTO HP tractors max.) is available in widths of 8' and 9' and features a heavy-duty CAT 1-2, 2 QH threepoint hitch. The 9' model is rated for up to 95 PTO HP wheel-type tractors. The 950 blade is available with either hydraulic or manual adjustments of the mainframe swing, moldboard angle, and m... + Read More
Features
Blades to handle all of your demanding jobs
Every Rhino rear blade features a precision-formed moldboard with the exact curvature needed to achieve maximum penetration. The constant curvature and the perfect fit of the replaceable cutting edge allows Rhino blades to cut and roll the material rather than dragging, saving time, horsepower, and fuel. Another important feature not found on most competitive blades is the cutting edge which extends out past the end of the moldboard slightly, reducing the rate of wear on the moldboard.
Every Rhino big blade features a solid steel cold rolled kingpin, heavy-duty three-point hitch, massive mainframe, and reinforced moldboard for superior strength and durability. All pivot points are designed and built to exacting tolerances for a tight fit, long wear, and dependable service. Multiple manual adjustment settings and infinite hydraulic settings make Rhino blades one of the easiest rear blades to operate.
- Heavy-Duty 3-Point Hitches
- Solid Steel Kingpins
- ½” x 6” Replaceable Cutting Edge
- Optional Skid Shoes
- Optional Gauge Wheels and Skid Shoes
Specs
| Model | 950 |
| Moldboard Width | 8', 9' |
| Moldboard Dimension | 3/8'' x 17'' |
| Cutting Edge | ½'' x 6'' |
| Support Stand | Std |
| Hitch | CAT 1 & 2 / CAT 1 & 2 QH |
| Maximum HP (2WD) | 8' - 125 9' - 95 |
| Maximum HP (FWA) | 8' - 106 9' - 81 |
| Kingpin Diameter | 3'' Solid Steel |
| Adjustment Types | Manual or Hydraulic |
| Offset (Max.) | 30'' |
| Pivot Forward | Up to 45° |
| Pivot Reverse | Up to 45° |
| Tilt- Up & Down | Up to 15° |
| No-Wrench Adjustments | |
| Weight (Approx.) | 8' - 836 Lbs. 9' - 876 Lbs. |
