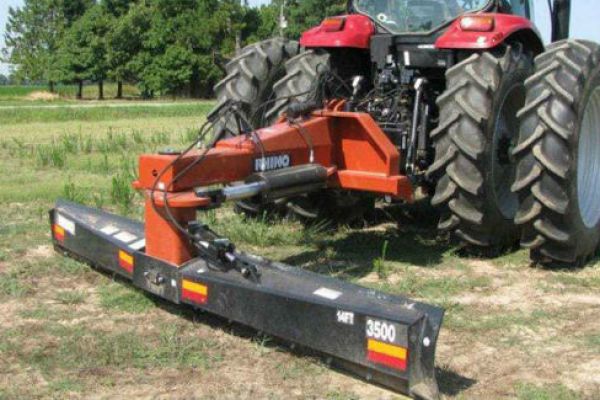

Apply NowRhino 3500 Blade
Heavy Duty Rear Blades 3500 Blade
The 3500 blade (300 draw bar HP wheel-type tractors max.) is available in widths of 12' and 14' and features a massive CAT 3-4 three-point hitch and quick-hitch. The 14' model is rated for up to 250 draw bar horsepower wheel-type tractors. Hydraulic adjustment of the mainframe swing, moldboard angle, and moldboard tilt... + Read More
Features
Blades to handle all of your demanding jobs
Every Rhino rear blade features a precision-formed moldboard with the exact curvature needed to achieve maximum penetration. The constant curvature and the perfect fit of the replaceable cutting edge allows Rhino blades to cut and roll the material rather than dragging, saving time, horsepower, and fuel. Another important feature not found on most competitive blades is the cutting edge which extends out past the end of the moldboard slightly, reducing the rate of wear on the moldboard.
Every Rhino big blade features a solid steel cold rolled kingpin, heavy-duty three-point hitch, massive mainframe, and reinforced moldboard for superior strength and durability. All pivot points are designed and built to exacting tolerances for a tight fit, long wear, and dependable service. Multiple manual adjustment settings and infinite hydraulic settings make Rhino blades one of the easiest rear blades to operate.
- Heavy-Duty 3-Point Hitches
- Solid Steel Kingpins
- ½” x 6” Replaceable Cutting Edge
- Optional Skid Shoes
- Optional Gauge Wheels and Skid Shoes
Specs
| Model | 3500 |
| Moldboard Width | 12', 14' |
| Moldboard Dimension | 1/2'' x 20'' |
| Cutting Edge | ½'' x 6'' |
| Support Stand | Std |
| Hitch | CAT 3 & 4 / CAT 3 & 4 QH |
| Maximum HP (2WD) | N/A |
| Maximum HP (FWA) | 12' - 300 14' - 250 |
| Kingpin Diameter | 5'' Steel Bar |
| Adjustment Types | Hydraulic |
| Offset (Max.) | 50'' |
| Pivot Forward | Up to 45° |
| Pivot Reverse | Up to 45° |
| Tilt- Up & Down | Up to 15° |
| No-Wrench Adjustments | |
| Weight (Approx.) | 12' - 3,463 Lbs 14' - 3,603 Lbs. |
