Apply NowRhino MBX96

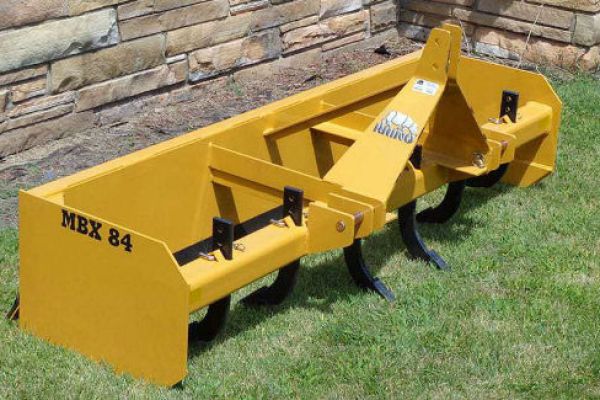

Heavy Duty Box Blades MBX96
Ideal for leveling and landscaping.
The perfect option for leveling or grading around the farm or when landscaping is the Rhino MBX Series. These Medium Duty Box Blades offer Rhino durability and strength with their heat-treated scarifier tips, replaceable cutting edges, and heavy-duty triple strap hitches.
Features
- Available from 5-8" Width
- Replaceable/Reversible Bolted Cutting Edges
- Swinging Rear Tailgate
- CAT 1 Quick-Hitch Compatible
- 55 PTO HP for 4-Wheel Drive or 65 PTO HP for 2-Wheel Drive
Specs
| Model | MBX96 |
| Working Width | 96'' |
| Overall Width | 97'' |
| Moldboard Height | 18'' |
| Box Depth | 21 1/2'' |
| Overall Depth | 27 1/2'' |
| Overall Height | 34'' |
| Cutting Edges | 1/2'' x 6'' |
| Scarifier Size | 3/4'' x 2 1/2'' |
| Number of Scarifiers | 6 |
| Hitch | CAT 1, 2 QH |
| Max Tractor HP (2WD) | 65 |
| Max Tractor HP (FWD) | 55 |
| End Plate Thickness | 3/8'' |
| Weight (Approx.) | 790 lbs. |
