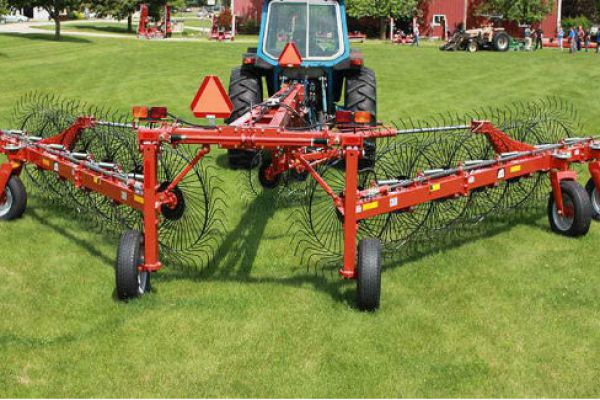

RDF - Revolution RDF12
Rake large fields quickly, making your haying operation more efficient and profitable.
High capacity and flexibility are the hallmarks of the RDF rake. With working widths ranging from 25' to 30' 10", large fields are raked quickly, making your haying operation more efficient and profitable. The RDF rake features ou... + Read More
Features
- Narrow Transport Width of 8' 4"
- Optional Hydraulic Dual-Center Kicker Wheel Kit
- Operating Speeds Up to 14 MPH
- Optional Rear Hydraulic Windrow Opening Kit
- Floating Rake Wheels to Follow Ground Contour
Specs
| Model | RDF12 |
| Number of Rake Wheels | 12 |
| Size of Rake Wheels | 55'' or 60'' |
| Tine Diameter | 55'' - 7MM 60'' - 7.5MM |
| Number of Tines Per Wheel | 40 |
| Manually Adjustable Windrow | 3' - 6' |
| Working Width | 25' |
| Operating Speed (MPH) | 5-14 |
| Horsepower Required (Min.) | 30 |
| Tire Size | 205/75/15 |
| Number of Tires | 4 |
| Transport Width | 8' 4'' |
| Transport Length | 24'8'' |
| Transport Height | 6'5'' |
| Light Kit and Tow Chain | Std |
