Apply NowPequea HR24TS
Rotary Rakes HR24TS

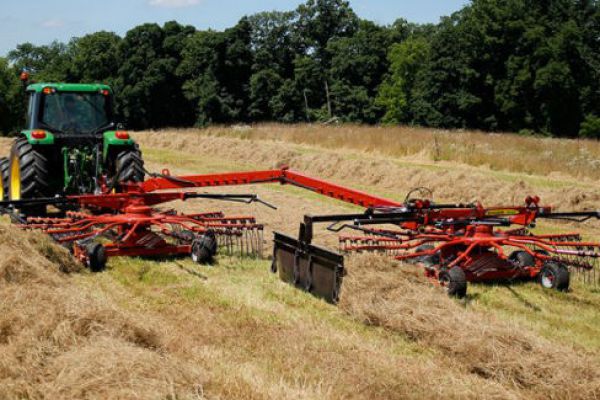

Pequea's HR-TS24 is a dual rotor rake that can either be used to rake two separate windrows or one large windrow, depending on your needs. The TS24 features two heavy duty 13 Arm rotors, a hydraulically adjustable curtain and lift cylinders under both rotors. This highly adaptable and versatile machine is the ultimate rotary rake.
Features
- Height stop adjustment easily reached on the bogie axle. The dual tandem option shown is available on both front and rear units for max flotation.
- Large commercial sealed gearbox. Stub arms accessible for maintenance without having to remove the gearbox.
- Only two SCV’s are needed to operate. A simple control box allows user to switch one SCV from steer to curtain adjustment. The other raises and lowers the rake.
- Trailing unit pivots independently of the front, up to 20 degrees either direction. This allows for cleaner raking and less stress on the frame in uneven terrain.
- The TS-24 has a parallel tongue to maximize lift height and swivel hitch for travel over rolling ground. Drive train is protected by a slip clutch on each gearbox.
Specs
| Working Width | 15-27" |
| Raking Width | 13-24' |
| Transport Width | 100" |
| Gearbox | Sealed |
| Gear Reduction | 9.7:1 |
| Number of Rotors | 2 |
| Tine Arms per Rotor | 13 |
| Double Tines per Arm | 4 |
| PTO HP Requirement | 50 HP |
| Hydraulic Requirement | 8 GPM / 1800 psi |
| Direction of Raking Action | Left |
| Weight | 3,8401,050 lbs. |
| Axle | Walking Beams |
| Tire and Wheel | 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim |
