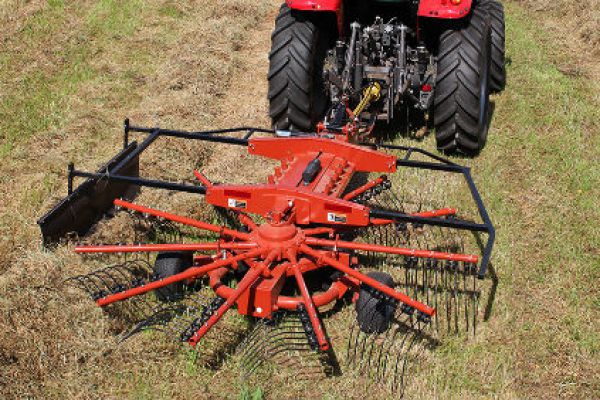

Apply NowPequea HR1140
Rotary Rakes HR1140
The HR1140 features an 11' clean sweep raking width, and a working width up to 14', also including a tilt cylinder, lift cylinder, walking beams and removable tine arms to make raking easy. We also include our 18.5 x 8 flotation tires which come standard for the HR1140.
Features
- The Standard Tandem Bogie Axle Provides smooth travel in rougher fields. The HR1140 overall height adjustment is set by bolt on each axle.
- Pitch adjustment is quick and easy. Using the crank on the front lift cylinder the rake is set and will always return to the raking position when lowered into raking position
- All units are equipped with a rear lift cylinder. The rake can be raised for clearing windrows or for transport in and out of fields.
- The HR1140 has an easy to adjust curtain and removable arms for transport or storage.
Specs
| Working Width | 13' |
| Raking Width | 11' |
| Transport Width | 5' |
| Gearbox | Enclosed Oil Bath |
| Gear Reduction | 7.9:1 |
| Number of Rotors | 1 |
| Tine Arms per Rotor | 11 |
| Double Tines per Arm | 4 |
| PTO HP Requirement | 40 HP - 540 RPM |
| Hydraulic Requirement | 6 GPM - 1200 psi |
| Direction of Raking Action | Left |
| Weight | 1,550 |
| Axle | Walking Beams |
| Tire and Wheel | 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim |
