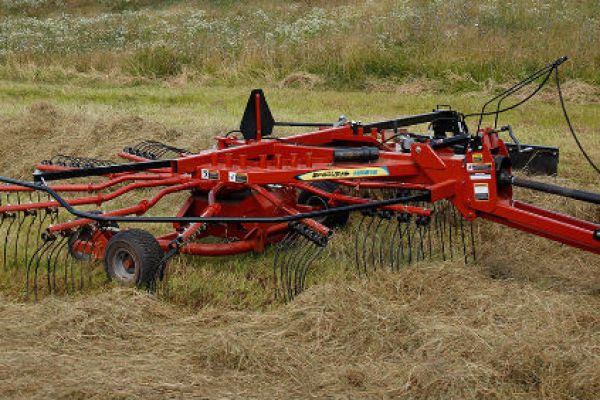

Apply NowPequea HR-S15
Rotary Rakes HR-S15
The HR-S15 is Pequea's most heavy duty single-rotor rake. From the frame to the gearbox, this rake is built to last. With 13 arms, the S15 features an extra-wide working width of 15'. This rake has everything you could ask for in a single rotor rake: Walking Beams, Level Lift Cylinder, Tilt Cylinder, and a Gearbox Pitc... + Read More
Features
- The Standard Tandem Bogie Axle Provides smooth travel in rougher fields.
- Pitch adjustment is quick and easy. Using the crank on the front lift cylinder the rake is set and will always return to the raking position when lowered into raking position
- All units are equipped with a rear lift cylinder. The rake can be raised for clearing windrows or for transport in and out of fields.
- The HRS15 has an easy to adjust curtain and removable arms for transport or storage.
Specs
| Working Width | 15' |
| Raking Width | 13' |
| Transport Width | 100" |
| Gearbox | Sealed |
| Gear Reduction | 9.7:1 |
| Number of Rotors | 1 |
| Tine Arms per Rotor | 13 |
| Double Tines per Arm | 4 |
| PTO HP Requirement | 40 HP - 540 RPM |
| Hydraulic Requirement | 1400 psi |
| Direction of Raking Action | Left |
| Weight | 1,900 |
| Axle | Walking Beams |
| Tire and Wheel | 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim |
