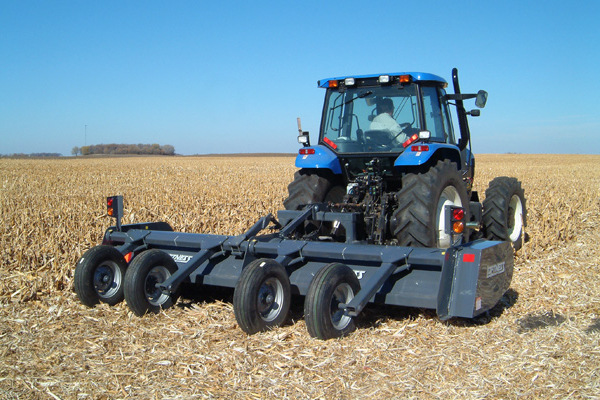

Loftness 216

HEAVY-DUTY CONSTRUCTION
The standard crop shredder line features heavy-duty design, engineering and construction throughout.

RATCHET OR HYDRAULIC REAR LIFT
Loftness crop shredders provide precise height adjustment for fine tuning performance and chop. Rear lifting choices include ratchets or hydraulic cylinders.

280-HORSEPOWER RATED GEARBOX
A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. Rotor speeds available are 1,450, 1,700 or 2,000 RPM.

1,000 RPM PTO
1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types.

KNIFE OPTIONS
The Standard 12/22 comes equipped with Loftness high residue knives, perfect for corn, wheat, sorghum, grasses and more. It can also be configured with any of our other optional knife sets:

• Hard-surfaced cupped
• Hard-surfaced cotton
• Hard-surfaced high residue
• Combination

MULTIPLE MOUNTING CONFIGURATIONS
The 12/22 crop shredders can be configured as pull-type, semi- or fully-mounted models.

4- OR 6-GROOVE BANDED BELT
Efficient transfer of power via a four- or six-groove banded belt and spring loaded push-type idler system.

WHEEL SPACING
Wheel position is adjustable to accommodate different row widths.

WHEEL AND TIRE CONFIGURATIONS
Configurations for the 12/22 include up to four rigid or swivel wheels and two front rigid wheels with ratchets.

OPTIONAL HYDRAULIC TRANSPORT SYSTEM
Factory-installed, this feature is available on the pull-type and fully-mounted models, except those equipped with bed rollers. Lifts all the support tires off the ground, making transport easy. Includes transport hitch.

OPTIONAL TRANSPORT HITCH
Factory-installed, this feature is available on the pull-type and fully-mounted models, except those equipped with bed rollers. Lifts all the support tires off the ground, making transport easy. Includes transport hitch.

Pull Type with Rigid Wheels

Fully Mounted with Rigid Rear Wheels

Fully/Semi-Mounted with Swivels on Rear Only

Fully/Semi-Mounted with Swivels on Rear & Swivel Front Wheels

Fully/Semi-Mounted with Swivels on Rear & Rigid Front Wheels
