Apply NowKongskilde Model F3600

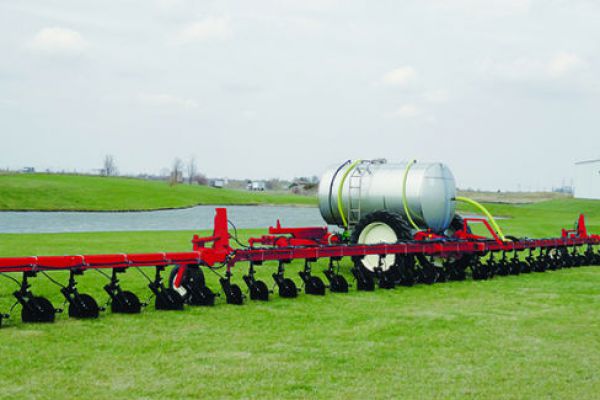

Sidedress Applicators Model F3600
The Model 3600 Sidedress Applicator is the largest built by Kongskilde. The applicator has the capabilities of working 60, 80’, or 90’ (based on 30" rows only). All you need to leave the outer wing folded up, close the valves to the outer wing, re-adjust the monitor for 60’ and you are sidedressing 24 rows in a matter of minutes.
Features
F3600 SIDEDRESS APPLICATOR
The behemoth, working up to 90' (27.43 m)
The F3600 is the largest built by Kongskilde, with the ability to work at 60' (18.29 m), 80' (24.38 m) or 90' (27.43 m) [based on 30" (76.2 cm) rows]. And transitioning from one size to another is simple! All you need to do is leave the outer wing folded up, close the valves to the outer wing, readjust the monitor and you are sidedressing 24 rows in a matter of minutes. Transporting the unit or storing it at the end of season is also easy with its front-fold style applicator. When folded, the unit is only 9' (2.74 m) high and 16'6" (5.03 m) wide. The F3600 is available with a 2400 gal (9085 L) stainless steel tank. Also available is a hydraulic pump with a TeeJet Monitor and a four-section shut off boom.
Specs
| Model | F3600 - Liquid |
| Foldable | Yes - Front-fold |
| Frame width | 7'' x 7'' |
| Min. working width | 60' |
| Max. working width | 90' |
| Min. Number of Rows | - |
| Max. Number of Rows | 35 Coulters |
| Row distance | 30'' |
| Tank capacity | 2400 Gallon |
| Trailed | Yes |
| Transport height | 9' |
| Transport width | 16' 6'' |
| Standard tires | 14.9R x 46 |
