Apply NowKongskilde Model F1300

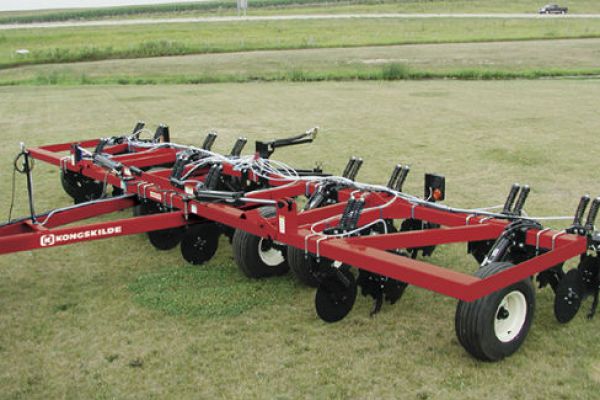

Anhydrous Toolbars Model F1300
Kongskilde’s Model F1300 Anhydrous Toolbar has working widths of 15’ to 37-1/2’. Framework for the 1300 is 7” x 5” tubing. There is a 48” spacing between the front and back bar for better trash flow.
Features
The F1300 can be setup on even or odd row spacing with either single or tandem wheel configurations. All wheels run in a line and are all hydraulically controlled using rephrase hydraulic cylinders. There are no pin adjust gauge wheels on the F1300 toolbar and there is just one tire size – 12.5 L x 15.
Specs
| Working Widths | 27-1/2, 30’, 32-1/2’, 35’, & 37-1/2’ |
| Mainframe & Wing Tubing | 7” x 5” Rectangular Tubing |
| Front Hitch | 6” x 4” Rectangular Tubing A-Frame Style Hitch |
| Transport Width | 17’ 3” |
| Transport Width (even rows) | - |
| Transport Width (odd rows) | - |
| Transport Height | 27-1/2’ & 30’ - 11’ 6” 32-1/2’ & 37-1/2’ - 13’ 6” |
| Mainframe Wheels (single or tandem | 12.5L x 15 - 8ply |
| Wing Wheels | 12.5L x 15 - 8ply (all hydraulically operated - no pin adjust) |
| Rear Hitch Assembly | Rigid or Floating with Telescoping Drawbar |
| Rephasing Lift System | Standard Equipment |
| Safety Lighting System | Standard Equipment |
| Combination Hitch Clevis (Single - Double) | Standard Equipment |
| Safety Chain | Standard Equipment |
| Saddle Clamp Wheel Legs | Standard Equipment |
| Rigid Shank Mounts w/20” Spring Loaded Coulter |
Optional |
| Auto-Reset Shank Mounts w/20” Spring Loaded Coulter |
Optional |
| 18” Trash Titan Disk Sealer | Optional |
| Water Rinse Tank w/Toolbox | Optional |
| Monitor Mounting Bracket (Raven/Hinicker) | Optional |
