Apply NowKongskilde VM-3 S
TMR Mixers VM-3 S

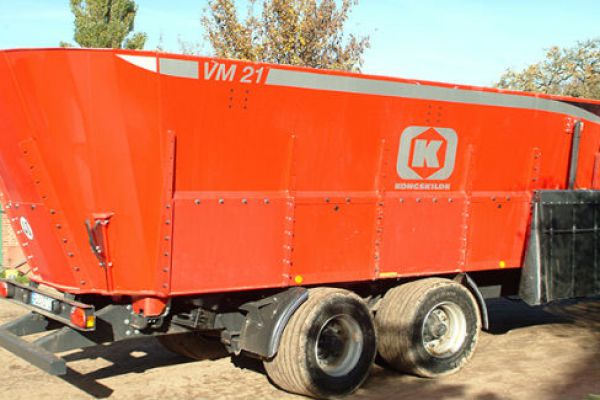

VM-3 S are compact 3 auger TMR mixers for narrow buildings. The VM-3 S can be equipped with 1-7 discharge doors. 3 augers shreds all types of bales very effectively and fast.
Features
- Steerable axles
Axles with articulation (steerable) are available for the big 2-auger and all 3-auger mixers.
- Less wear on tires and surface.
- Reduces the load on the chassis.
- Closed technical compartment for electronic and hydraulic components
- Prevents damage to components
- Trouble shooting is easier
- Protection against feed remains, dirt from tractor wheels, wind and weather etc.
- Easy access to technical compartment
- Minimum time is used for inspection,troubleshooting and maintenance of battery. - Strong ladder and platform
On VM-1 S, VM-1, VM-2S and VM-3 S the ladder can subsequently be moved to the right-hand side.
- Possibility of inspection of the mixture and high safety.
- Easy access - Separate chassis
The drawing power goes through the drawbar and the chassis frame to the rear axle. The tub stands on the chassis via the weighing cells.
- No twisting or horizontal draw in the weighing cells
- The weighing system can work when the tractor is disconnected and the mixer stands on the support. - Oversteering of valve block
- In case of electronic failure, the hydraulic valve block can be oversteered manually directly on the valve. - Straight dive lines
Drive lines without deviation of the PTO shafts.
- Long greasing intervals
- Minimum maintenance. - Strong auger gears
Strong auger bearing consisting of 2 large conical roller bearings. When it is cold, the oil level falls. Therefore the upper bearing is greased for life and the lower bearing runs in oil bath.
- Maximum support
- Minimum friction and maintenance. - Tapered tub sides
The tapered tub sides hold the feed firmly.
- Prevents the feed from rotating with the auger.
- Instead the auger mixes the feed quickly and effectively. - Adjustable shearbars
The 2 adjustable shearbars are very effective and optimize the shredding of bales of hay and straw.
- Quick shredding of bales
- Shorter operation time means less wear and less power consumption. - One shear bolt
One shear bolt for all augers. All augers are stopped when the shear bolt releases.
- The other auger gears are not overloaded by the additional forces.
- The augers remain synchronized. - Spring-loaded axles
All mixers with 2 or 3 axles have spring suspended axles. Less wear on tires, rim and chassis because the individual wheel is not exposed to the entire load, contrary to fixed axles.
Specs
| Model | VM 21-3 S | VM 24-3 S | VM 26-3 S | VM 28-3 S |
| Cubic capacity m³ | 21 | 24 | 26 | 28 |
| Discharge | Discharge doors | Discharge doors | Discharge doors | Discharge doors |
| Total height with standard tires, ft/(m)* | 8.8 ft | 9.5 ft | 10.0 ft | 10.5 ft |
| Height based on twin wheels | Single axle 435/50 R/19.5 | Tandem 305/55 R/22.5 | Tandem 305/55 R/22.5 | Tandem 305/55 R/22.5 |
| Tractor power, kW (hp) | 85/115 | 90/122 | 100/136 | 105/143 |
| One load of feed corresponds to the daily need (8000 kg ECM/cow/year) | 120-155 dairy cows | 135-185 dairy cows | 155-195 dairy cows | 160-210 dairy cows |
| * The heights may deviate +/- 1-3/16" (3 cm) due to tire pressure etc. | ||||
