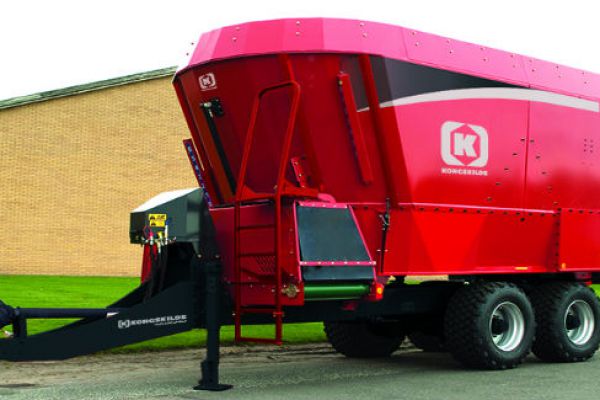

Kongskilde VM-2 B/X

• Steerable axles
  Axles with articulation (steerable) are available for the big 2-auger and all 3-auger mixers.
  - Less wear on tires and surface.
  - Reduces the load on the chassis.

• Closed technical compartment for electronic and hydraulic components
  - Prevents damage to components
  - Trouble shooting is easier
  - Protection against feed remains, dirt from tractor wheels, wind and weather etc.

• Easy access to technical compartment
  - Minimum time is used for inspection,troubleshooting and maintenance of battery.
• Strong ladder and platform
  On VM-1 S, VM-1, VM-2S and VM-3 S the ladder can subsequently be moved to the right-hand side.
  - Possibility of inspection of the mixture and high safety.
  - Easy access
• Separate chassis
  The drawing power goes through the drawbar and the chassis frame to the rear axle. The tub stands on the chassis via the weighing cells.
  - No twisting or horizontal draw in the weighing cells
  - The weighing system can work when the tractor is disconnected and the mixer stands on the support.
• Oversteering of valve block
  - In case of electronic failure, the hydraulic valve block can be oversteered manually directly on the valve.
• Straight dive lines
  Drive lines without deviation of the PTO shafts.
  - Long greasing intervals
  - Minimum maintenance.
• Strong auger gears
  Strong auger bearing consisting of 2 large conical roller bearings. When it is cold, the oil level falls. Therefore the upper bearing is greased for life and the lower bearing runs in oil bath.
  - Maximum support
  - Minimum friction and maintenance.
• Tapered tub sides
  The tapered tub sides hold the feed firmly.
  - Prevents the feed from rotating with the auger.
  - Instead the auger mixes the feed quickly and effectively.
• Adjustable shearbars
  The 2 adjustable shearbars are very effective and optimise the shredding of bales of hay and straw.
  - Quick shredding of bales
  - Shorter operation time means less wear and less power consumption.
• One shear bolt
  One shear bolt for all augers. All augers are stopped when the shear bolt releases.
  - The other auger gears are not overloaded by the additional forces.
  - The augers remain synchronized.
• Spring-loaded axles
  All mixers with 2 or 3 axles have spring suspended axles. Less wear on tires, rim and chassis because the individual wheel is not exposed to the entire load, contrary to fixed axles.

* The heights may deviate +/- 1-3/16" (3 cm) due to tire pressure etc.
