Apply NowExmark LZS80TDYM604W0

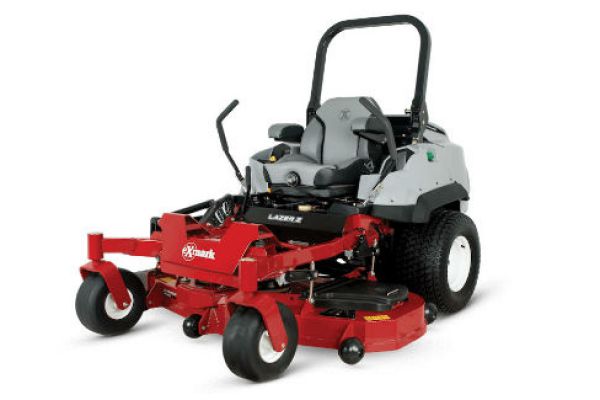

LAZER Z DIESEL WITH RED TECHNOLOGY LZS80TDYM604W0
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.
Features
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.
Specs
| Equipment | |
| blades Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver. |
| Drive Tires | 26x12-12, 6ply Multi Trac® |
| Cup Holder | Standard |
| Tractor Frame | Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel. |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness. |
| Front Caster Tires | 15 x 6.0-6, smooth-tread, semi-pneumatic. |
| Parking Brake | Lever-actuated internal wet disc brake. |
| Seat | Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
| Electrical | 12-volt battery with 55-amp alternator. |
| Power Components | |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80FT |
| Engine Displacement | 1,267 |
| Engine Series | TNV |
| Engine Type | Electronically Governed IDI Turbo Diesel |
| Engine Speed | 2,600 RPM |
| Air Filter | Heavy-duty canister air filtration system with electronic vacuum sensor |
| Fuel Type | Diesel |
| Fuel Capacity | 12-gallon (45.4-L), side fuel tanks |
| Fuel Indicator | Yes - mechanical float type |
| Drive | Hydro-Drive |
| Drive Description | Kanzaki KPS-18T Transmission, 15-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler. |
| Speed | Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse. |
| Carb Compliant | Yes |
| Deck Lift | Hydraulic |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| PTO Engagement | Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft |
| Drive Wheel Release | Allows unit movement without engine running. |
| Casters | .50" thick caster yoke arms. |
| Decks | |
| Width / Cutting Deck | 60" |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight. |
| Blade Tip Speed | Approximately 17,600 fpm |
| Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat. |
| Blades | 3 Blades at 20.50" Length |
| Dimensions | |
| Width | 72.8 in. (184.9 cm) |
| Length | 96.3 in. (244.6 cm) |
| Height | 72.5 in. (244.6 cm) |
| Curb Weight | 1915 |
Accessories and Attachments
Jack Mount Receiver
RECEIVER-JACK MOUNT - Lazer Diesel
Light Kit (not compatible with 135-2473)
Hitch Kit
Hitch kit (NLZD)
Trash Container (Not compatible with 135-7076)
Trash container (NLZD)
UltraVac Collection System
UltraVac 3-Bagger Collection System (NLZD)
Slow Moving Vehicle Sign Kit
Slow moving sign kit (NLZD)
Jack
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Turf Striping Kit
Fits 72" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
Sun Shade (ROPS)
Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Rear Guard and Bumper Kit
Flasher Light Kit
Completing Kit
UltraVac Completing Kit, 604-80T (NLZD)
Operator Controlled Discharge (foot)
Operator Controlled Discharge (Foot)
Micro-Mulch System
The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
