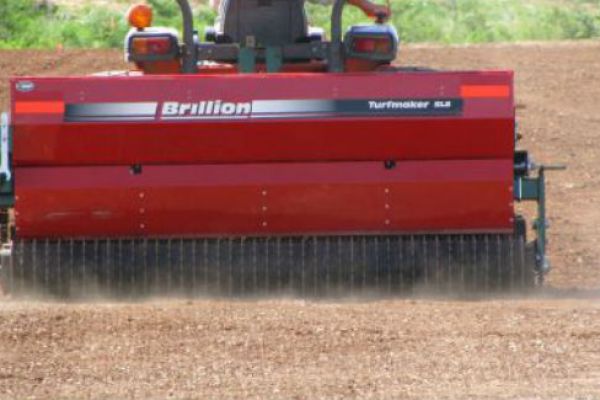

Turfmaker Series SLP-10
The Turfmaker Series raises the bar on the precision seeding of small grass seeds. A large seed box capacity along with narrow meter spacing and the micro-meter adjustment gives this series of seeders the edge. The Turfmaker Series is available in 8’, 10’ and 12’ sizes and is offered in both three-point hitch and pull-... + Read More
Features
- 8', 10', 12' Three-Point Hitch and 10' and 12' Pull-Type Models Available
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on Pull-Type Models
- Micro-Metered Seed Box
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Turfmaker Sprockets for Rear Pulverizer Roller Available
- Agitator Kit Available
- Speed Up Kit (Doubles Output)
- S-Tine Track Remover Kit Available
- Scraper Kit for Front Pulverizer Roller
- Seed Shaft Monitor Kit Available
Specs
| Model | SLP-10 |
| Approximate Weight | 2,074 lbs. (933 kg) |
| Working Width | 10 ft. 0 in. (3.0 m) |
| Transport Width | 11 ft. 4 in. (3.4 m) |
| Transport Height | Tractor Dependent |
| Road Clearance | Tractor Dependent |
| Overall Height | 4 ft. 0 in. (1.20 m) |
| Overall Length | 4 ft. 10 in. (1.5 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 7.5 bu. |
| Seed Meters | "Micro-Meter" |
| Seed Meter Drive | Ground Driven |
| Seed Meter Spacing | 4.25 in. (108 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Three-Point Hitch - Cat. II Free Link; Cat. II, IIIN Quick Coupler Hitch |
| Hydraulic Equipment | N/A |
| Tire Size | N/A |
| Seed Box Agitator Kit | Optional |
| S-Tine Wheel Track Remover | Optional |
| Front Roller Scraper Kit | Optional |
| Turfmaker Sprockets | Optional |
| Electronic Acre Meter Kit | Optional |
| Speed Up Kit (Doubles Output) | Optional |
| Short Coupled Three-Point Hitch | N/A |
| Seed Shaft Monitor Kit | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | N/A |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
