Apply NowBrillion SLB-2101

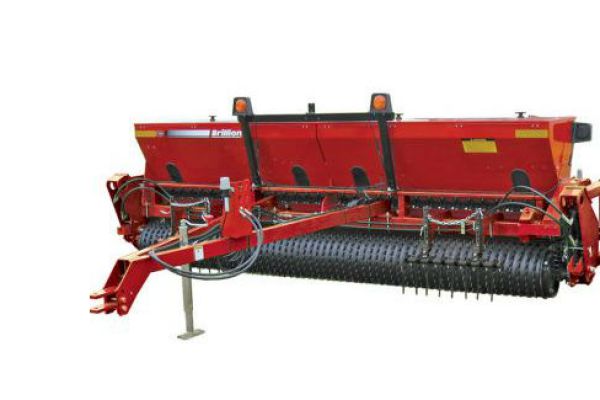

Turfmaker II Series SLB-2101
The Turfmaker II Series is the largest of the Brillion Landscape Seeders. 8’, 10’, and 12’ sizes are available. These models offer large seed box capacities with narrow meter spacing to provide the ultimate in high efficiency seeding. They are available in Cat. II three-point hitch and pull-type models with hydraulic t... + Read More
Features
- 8', 10', 12' Three-Point Hitch and Pull-Type Models Available
- High Capacity Meters for High Volume Landscape Customers
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on 8' Pull-Type Models
- 11L x 15-8 Ply Tires on 10' and 12' Pull-Type Models
- High Capacity Micro-Metered Large Seed Box
- Micro-Metered Small Seed Box
- Seed Box Sight Windows
- Electric Clutch Kit Standard
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Turfmaker Sprockets for Rear Pulverizer Roller Available
- S-Tine Track Remover Kit Available
- Coil Tine Track Remover Kit Available
- Scraper Kit for Front Pulverizer Roller Available
- Seed Shaft Monitor Kit Available
Specs
| Model | SLB-2101 |
| Approximate Weight | 3,063 lbs. (1,378 kg) |
| Working Width | 10 ft. 0 in. (3.0 m) |
| Transport Width | 13 ft. 5 in. (4.03 m) |
| Transport Height | 6 ft. 6 in. (2.0 m) |
| Road Clearance | 1 ft. 3 in. (0.4 m) |
| Overall Height | 5 ft. 3 in. (1.6 m) |
| Overall Length | 11 ft. 9 in. (3.6 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 19 bu. / 7.6 bu. |
| Seed Meters | High Capacity Meter / "Micro-Meter" |
| Seed Meter Drive | Ground Driven |
| Seed Meter Spacing | 4.25 in. (108 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Pull-Type with Hydraulic Transport |
| Hydraulic Equipment | Cylinders with Hoses to Hitch Point |
| Tire Size | 11L x 15-8 Ply Implement Rib |
| S-Tine Wheel Track Remover | Optional |
| Coil Tine Wheel Track Remover | Optional |
| Front Roller Scraper Kit | Optional |
| Turfmaker Sprockets | Optional |
| Electronic Acre Meter | Optional |
| Seed Shaft Monitor Kit | Optional |
| Small Seed Box Kit | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
