Apply NowBrillion LSP-5

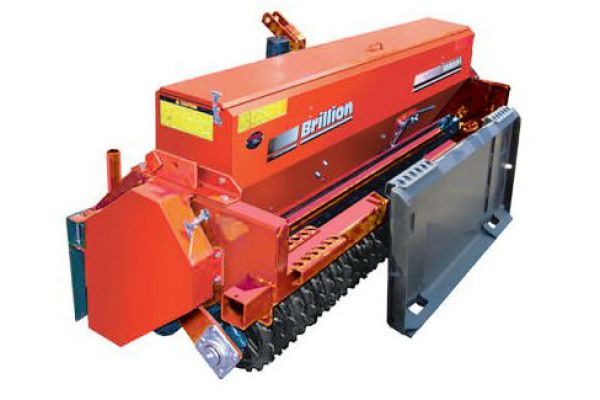

Landscape Models LSP-5
Landscape Series – LSP5, LSP6 & LSS6
The 5’ and 6’ LSP and LSS Seeders are the smallest of the Landscape Seeders. These units use blade agitator seed meters that accommodate a wide variety of landscape seeds. The three inch meter spacing provides excellent distribution of seed across the full width of the seeder. Th... + Read More
Features
Landscape Series - LSP5, LSP6 & LSS6
- 5' and 6' Models
- Three-Point Hitch - Cat. I, II Free Link
- Three-Point Hitch - Cat. I, II Quick Coupler Hitch
- Quick-Attach Skid Steer Mounting Plate on LSS6
- Blade Agitator Seed Box
- 11.5" Gray Cast Iron Front Pulverizer Roller
- 9.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Lift Sling Kit Available
- Turfmaker Sprockets for Rear Pulverizer Roller Available
- Brush Agitator for Rear Seed Box Available
Specs
| Model | LSP-5 |
| Approximate Weight | 924 lbs. (416 kg) |
| Working Width | 5 ft. 0 in. (1.25 m) |
| Transport Width | 6 ft. 0 in. (1.8 m) |
| Transport Height | Dependent Upon Tractor |
| Overall Height | 3 ft. 7 in. (1.08 m) |
| Overall Length | 2 ft. 6 in. (0.8 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Agitator Box | 3.75 bu. |
| Seed Meters | Blade Agitator |
| Seed Meter Drive | Ground Driven |
| Seed Opening Spacing | 3 in. (76.2 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 9.5 in. (241 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 8.625 in. (219 mm) |
| Pulverizer Axle Size - Rear | 1.75 in. (44.5 mm) |
| Coil Tine Wheel Track Remover | Standard |
| Three-Point Hitch | Cat. I - II Free Link; Cat. I, II Quick Coupler Hitch |
| Lift Sling Kit | Optional |
| Electronic Acre Meter Kit | Optional |
| Brush Agitator Kit | Optional |
| Turfmaker Sprockets | Optional |
| SMV Emblem | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 35 HP (26.88 kW) and up |
| Recommended Operating Speed | 3 to 5 MPH (5 to 8.3 km/h) |
