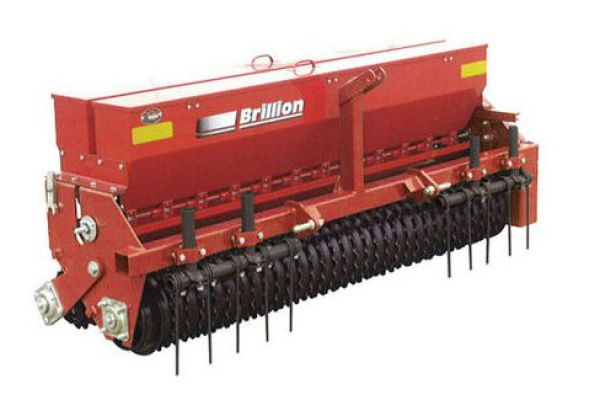

Apply NowBrillion SSP-4
Three-Point Hitch Models (4' to 6') SSP-4
The SSP Series is available in 4’, 5’ and 6’ sizes. Equipped with a meter and agitator box as standard equipment, these three-point hitch models will do everything the larger machines can do, only on a much smaller scale. Coil tine wheel track removers and blade agitators in the rear seed box are standard. The close co... + Read More
Features
Three-Point Hitch Models - 4' to 6'
- Three-Point Hitch - Cat. I, II Free Link
- Three-Point Hitch - Cat. I, II Quick Coupler Hitch
- Micro-Metered Front Seed Box
- Blade Agitator in Rear Seed Box
- 11.5" Gray Cast Iron Front Pulverizer Roller
- 9.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Coil Tine Wheel Track Remover Standard
- Lift Sling Kits Available
- Speed Up Kit (Doubles Output) Available
- Brush Agitator for Rear Seed Box Available
Specs
| Model | SSP-4 |
| Approximate Weight | 844 lbs. (380 kg) |
| Working Width | 4 ft. 0 in. 1.2 m) |
| Transport Width | 5 ft. 0 in. (1.25 m) |
| Transport Height | Dependent Upon Tractor |
| Overall Height | 3 ft. 7 in. (1.08 m) |
| Overall Length | 2 ft. 6 in. (0.8 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 1.75 bu. |
| Seed Box Capacity - Agitator Box | 1.75 bu. |
| Seed Meters | "Micro-Meter" / Blade Agitator |
| Seed Meter Drive | Ground Driven |
| Seed Meter/Opening Space | 8 in. (203 mm) / 4 in. (102 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 9.5 in. (241 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 8.625 in. (219 mm) |
| Pulverizer Axle Size - Rear | 1.75 in. (44.5 mm) |
| Three-Point Hitch | Cat. I, II Free Link; Cat. I, II Quick Coupler Hitch |
| Coil Tine Track Remover | Standard |
| Lift Sling Kit | Optional |
| Electronic Acre Meter Kit | Optional |
| Brush Agitator Kit for Brome Box | Optional |
| Speed Up Kit (Doubles Output) | Optional |
| SMV Emblem | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 35 HP (26.88 kW) and up |
| Recommended Operating Speed | 3 to 5 MPH (5 to 8.3 km/h) |
