Apply NowBrillion SSBP-10

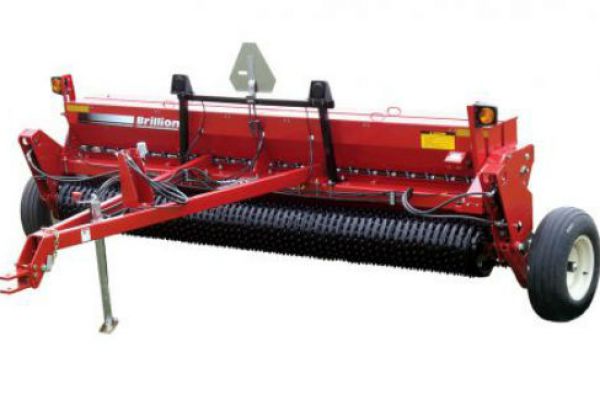

Standard Series SSBP-10
The Standard Series of Sure Stand Seeders are the most popular and most versatile of the agricultural models. They are available in 8’, 10’ and 12’ sizes, in either Cat. II three-point hitch or pull-type models with hydraulic transport. They are available with both the legume box and brome box. Spring tine or coil tine... + Read More
Features
- 8', 10' and 12' Three-Point Hitch and Pull-Type Models Available
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on Pull-Type Models
- Micro-Metered Front Seed Box
- Factory Installed Blade Agitator in Rear Seed Box (Cage Agitator is Shipped Uninstalled)
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Brush Agitator Kit for Rear Seed Box Available
- Divider Kit for Front Seed Box Standard (Separates Each Meter in Seed Box)
- Speed Up Kit (Doubles Output) Available
- S-Tine Wheel Track Remover Kit Available
- Scraper Kit for Front Pulverizer Roller Available
- Electric Clutch Kit Available
- Seed Shaft Monitor Kit Available
Specs
| Model | SSBP-10 |
| Approximate Weight | 2,207 lbs. (993 kg) |
| Working Width | 10 ft. 0 in. (3.0 m) |
| Transport Width | 11 ft. 4 in. (3.4 m) |
| Transport Height | Tractor Dependent |
| Road Clearance | Tractor Dependent |
| Overall Height | 3 ft. 4 in. (1.0 m) |
| Overall Length | 4 ft. 10 in. (1.5 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 4.375 bu. |
| Seed Box Capacity - Agitator Box | 4.375 bu. |
| Seed Meters | "Micro-Meter" / Blade Agitator |
| Seed Meter Drive | Ground Driven |
| Seed Meter/Opening Spacing | 8.58 in. (218 mm) / 4.29 in. (109 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Three-Point Hitch - Cat. II Free Link; Cat. II, IIIN Quick Coupler Hitch |
| Hydraulic Equipment | N/A |
| Tire Size | N/A |
| Brush Agitator Kit for Brome Box | Optional |
| Blade Agitator Kit for Brome Box | Standard |
| Cage Agitator Kit for Brome Box | Standard |
| S-Tine Wheel Track Remover | Optional |
| Front Roller Scraper Kit | Optional |
| Legume Box Divider Kit | Standard |
| Electronic Acre Meter | Optional |
| Speed Up Kit (Doubles Output) | Optional |
| Factory Installed Electric Clutch | Optional |
| Seed Shaft Monitor Kit | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | N/A |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
