Apply NowBrillion SSP-108

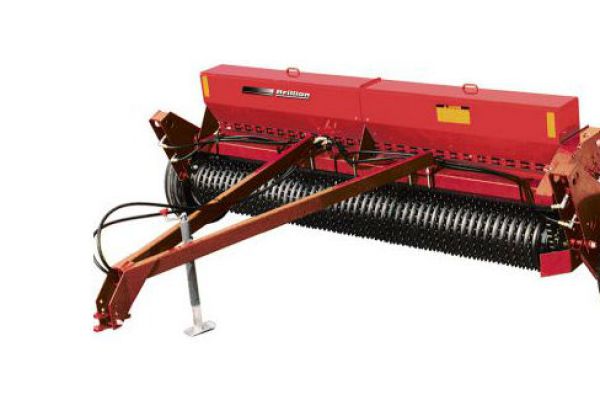

Mid-Size Series SSP-108
The Mid-Size Series is available in 8’, 10’ and 12’ sizes, in either Cat. II three-point hitch or pull-type models with hydraulic transport. These seeders employ the same bottom end for soil engagement and seed placement as all of the other Sure Stand models. However, the Mid-Size Series features a larger capacity legu... + Read More
Features
- 8', 10' and 12' Three-Point Hitch and Pull-Type Models Available
- Larger Box Capacity and Narrower Meter Spacing than Standard Series Models
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on Pull-Type Models
- Micro-Metered Seed Box
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- S-Tine Wheel Track Remover Kit Available
- Coil Tine Track Remover
- Scraper Kit for Front Pulverizer Roller Available
- Electric Clutch Kit Available
- Seed Shaft Monitor Kit Available
Specs
| Model | SSP-108 |
| Approximate Weight | 1,734 lbs. (780 kg) |
| Working Width | 8 ft. 0 in. (2.4 m) |
| Transport Width | 9 ft. 6 in. (2.85 m) |
| Transport Height | Tractor Dependent |
| Road Clearance | Tractor Dependent |
| Overall Height | 3 ft. 8 in. (1.1 m) |
| Overall Length | 4 ft. 10 in. (1.5 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 6 bu. |
| Seed Meters | "Micro-Meter" |
| Seed Meter Drive | Ground Driven |
| Seed Meter Spacing | 4.25 in. (108 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Three-Point Hitch - Cat. II Free Link; Cat. II, IIIN Quick Coupler Hitch |
| Hydraulic Equipment | N/A |
| Tire Size | N/A |
| S-Tine Wheel Track Remover | Optional |
| Coil Tine Track Remover | Optional |
| Front Roller Scraper Kit | Optional |
| Electronic Acre Meter | Optional |
| Factory Installed Electric Clutch | Optional |
| Seed Shaft Monitor Kit | Optional |
| Short Coupled Three-Point Hitch | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | N/A |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
