Apply NowBrillion SS-2121

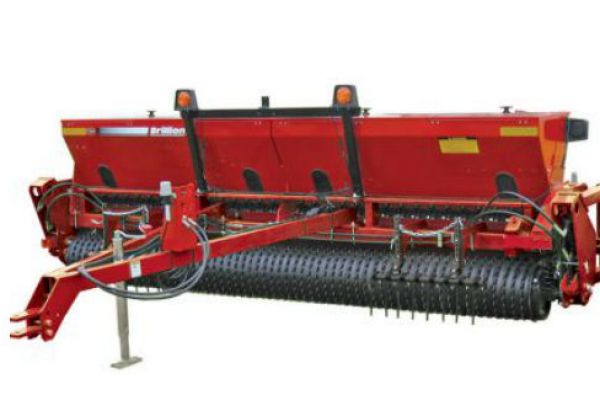

High Capacity Series SS-2121
The High Capacity Series features the largest seeding capacity of all Brillion Sure Stand Agricultural Seeders. 8’, 10’ and 12’ sizes are available. Built with many of the same features as the Standard Series and the Mid-Size Series, these models offer even larger seed box capacities with narrow meter spacing to provid... + Read More
Features
High Capacity Series
- 8', 10' and 12' Three-Point Hitch and Pull-Type Models Available
- Largest Seed Box Capacity with Narrow Meter Spacing
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on 8' Pull-Type Models
- 11L x 15-8 Ply Tires on 10' and 12' Pull-Type Models
- Micro-Metered Seed Box
- Seed Box Sight Windows
- Electric Clutch Kit Standard
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- S-Tine Wheel Track Remover Kit Available
- Coil Tine Track Remover
- Scraper Kit for Front Pulverizer Roller Available
- Seed Shaft Monitor Kit Available
Specs
| SS-2121 | |
| Approximate Weight | 3,503 lbs. (1,576 kg) |
| Working Width | 12 ft. 0 in. (3.6 m) |
| Transport Width | 15 ft. 6 in. (4.65 m) |
| Transport Height | 6 ft. 6 in. (2.0 m) |
| Road Clearance | 1 ft. 3 in. (0.4 m) |
| Overall Height | 5 ft. 3 in. (1.6 m) |
| Overall Length | 11 ft. 9 in. (3.6 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 23 bu. |
| Seed Meters | "Micro-Meter" |
| Seed Meter Drive | Ground Driven |
| Seed Meter Spacing | 4.25 in. (108 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Pull-Type with Hydraulic Transport |
| Hydraulic Equipment | Cylinders with Hoses to Hitch Point |
| Tire Size | 11L x 15-8 Ply Implement Rib |
| S-Tine Wheel Track Remover | Optional |
| Coil Tine Track Remover | Optional |
| Electronic Acre Meter | Optional |
| Factory Installed Electric Clutch | Standard |
| Seed Shaft Monitor Kit | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
