Apply NowBrillion BPSB-6

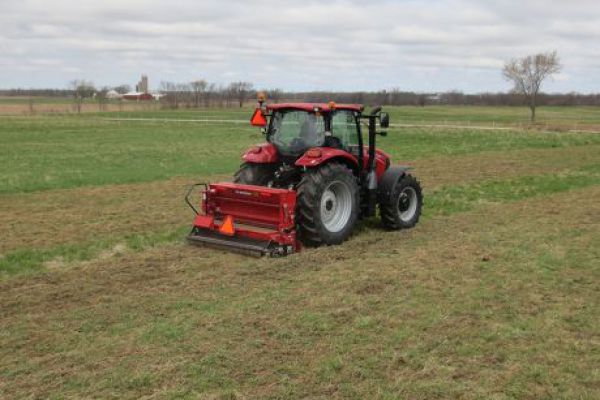

Till 'N Seed® BPSB-6
The Till ‘N Seed offers a fully adjustable Cat. I-II three-point hitch that can be offset to accommodate tractors with a wide wheel tread. Built-in parking stands allow the Till ‘N Seed to be safely detached from the tractor without the fear of tipping. A built-in walk-board with step and hand rail on the rear of uni... + Read More
Features
The Overseeder with the Can Do Attitude
- 6' Three-Point Hitch Models Available
- Cat. I, II, Quick-Attach and iMatchTM Compatible Three-Point Hitch
- Hitch Can be Moved Off-Center for Use on Wider Tractors
- Drive and Tillage Rotors Made of Abrasion Resistant Steel
- Tillage Rotor Runs 2 1/2 Times Faster than Drive Rotor
- #80 Drive Chain
- Tillage Rotor Free to Follow Ground's Contour
- Rockshaft Holds Floating Tillage Rotor Parallel to Drive Rotor for Optimum Performance
- Rotors Mesh Together for Self-Cleaning Design
- Air Shock Maintains Tillage Rotor's Contact With the Soil
- Heavy-Duty 1.5" Greaseable Bearings on All Rotor Shafts
- Adjustable Gauge Wheels Control Depth of Tillage Rotor
- Floating Cast Iron Firming Roller Provides Final Touch for Ideal Seedbed
- Double Seed Box Capacity
- Micro-Metered Seed Box for Planting Fluffy or Larger Seed Varieties
- Second Micro-Metered Seed Box for Seeding Smaller Seeds
- User Friendly Seed Rate Adjustments
- Three Seed Rate Ranges Available for Large Micro-Meter Seed Box By Changing Out Sprockets
- Seed Box Disconnect Klik Pin Disconnects the Seed Drive for Seed Rate Calibration and Prevents Wear and Tear on the Seed Box Drives in Tillage-Only Mode
- Wind Deflector Doubles as Trough for Catching Seed During Calibration Process
- Hand Rail, Step, and Walkboard Provide for Operator Safety
- Rubber Guard Prevents Debris or Residue from Being Projected from the Tillage Rotors
- Convenient Brackets Included for Securing Machine to Trailers and for Lifting Machine On and Off Trailers
- Integral Parking Stand
- Parking Pin Allows Unit to Maintain Correct Orientation When Unhitched from Tractor
- Powder Coat Paint
- Manufactured Under US Patent 8,590,632 B2
Specs
| Model | BPSB-6 |
| Approximate Weight (Empty) | 2,120 lbs. (962 kg) |
| Three-Point Hitch Type | Cat. I, II, Quick-Attach, iMatch Compatible |
| Tractor Horsepower Range | 35 to 60 HP (26 to 45 kw) |
| Tractor Lift Capacity Requirement | 2,150 lbs. (977 kg) 24 in. (610 mm) Behind Lift Arms |
| Overall Width | 90 in. (2.29 m) |
| Working Width | 72 in. (1.83 m) |
| Base Unit Length | 46 in. (1.17 m) |
| Unit Height | 50 in. (1.27 m) |
| Recommended Speed | 4 to 8 MPH (6.4 to 12.9 km/h) (Dependent on Conditions) |
| Acres/Hour | 2.9 @ 4 MPH, 5.8 @8 MPH |
| Rotor Axles | 1.75 in. (44.45 mm) Square Shaft |
| Rotor & Roller Bearings | 1.5 in. (38.1 mm) Greaseable Bearings |
| Drive Rotor (Front) | 414 lbs. (193 kg) |
| Number of Blades | 31 |
| Blade Material | Abrasion Resistant Steel |
| Blade Spacing | 2.25 in. (57.15 mm) |
| Blade Thickness | 0.313 in. (7.95 mm) |
| Blade Diameter | 13 in. (330.2 mm) OD |
| Drive Type | Ground |
| Tillage Rotor (Middle) | 351 lbs. (166 kg) |
| Number of Blades | 32 |
| Blade Material | Abrasion Resistant Steel |
| Blade Spacing | 2.25 in. (57.15 mm) |
| Blade Thickness | 0.188 in. (4.78 mm) |
| Blade Diameter | 13 in. (330.2 mm) OD |
| Drive Ratio | 2:01 |
| Rotor Speed | 197 RPM @ 4 MPH, 394 RPM @ 8 MPH |
| Independent Flotation | Standard |
| Down Force Adjustability | Standard |
| Drive Type | # 80 Roller Chain |
| Firming Roller (Rear) | 231 lbs. (105 kg) |
| Number of Cast Wheels | 37 |
| Independent Flotation | Standard |
| Air Shock | Standard |
| Air Pressure Range | 20 to 120 psi (138 to 827 KPa) |
| Frame Construction | All Welded Structural Steel |
| Seed Box | Standard - Front & Rear |
| Seed Box Capacity | 4.5 Bushels (158.5 l) + 1.4 Bushels (49.3 l) |
| Seed Metering | High Capacity Micro-Meter/Standard Micro-Meter |
| Seed Metering Drive | Positive Ground Driven |
| Drive Type | Roller Chain |
| Electronic Acre Meter | Optional |
| Powder Coat Paint, Red | Standard |
