Apply NowBrillion SSBP-36

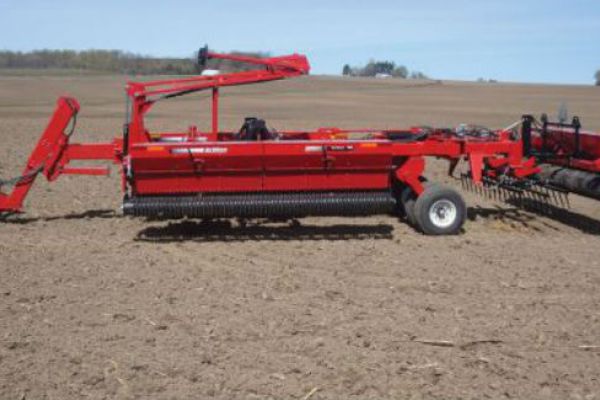

4630-36 Folding Seeder SSBP-36
Producers will have peace of mind that even though the seeding capacity has gone up, the 4630-36 Folding Seeder will still afford the same industry leading performance the Brillion Sure Stand Seeder is famous for. The 4630-36 Folding Seeder is a combination of the proven Landoll front folding grain drill hitch and the ... + Read More
Features
Get the Job Done 36' at a Time
- 36' Seeding Width
- 3 - 12' Three-Point Hitch Seeders Standard
- Seeder Choices
- Standard Series Agricultural Seeder with Front and Rear Seed Boxes
- Mid-Size Agricultural Seeder
- High Capacity Agricultural Seeder
- Cast Single Lip Cat. IV Hitch
- Hydraulic Leveling Hitch
- Transport Width Under 13' 6"
- Center Section is Carried by 12.5L x 15 (GY-Fl) Load F Tires with 8 Bolt Hubs and 2 7/8" Slip-In Spindles
- Wings Equipped with 11L x 15, 12 Ply Tires with 6 Bolt Hubs and 2" Spindles
- Wings Float Up 14 Degrees and Down 14 Degrees for Superior Contour Following and Precision Seed Placement
- Coil Tine Track Remover Kit Standard for Center Section
- Wheel Track Removers Standard for Wing Tires
- Each Seeder is Mounted to the Main Frame Via a Three-Point Hitch Allowing Each Seeder to Raise and Lower in the Field without Changing Position of the Main Frame
- Electric Shut Off Clutches Control Each Seeder Individually
- Electronic Acre Meter Kit Standard Equipment
- Seed Shaft Monitor Kit Standard Equipment
- Folding Row Marker Kit Available
- LED Safety Warning Lights
- Powder Coat Paint
Specs
| Model | SSBP-36 |
| Description | (3) SSBP-12 Agricultural Seeders |
| Approximate Weight (Empty) | 18,440 lbs. (8,364 kg) |
| Working Width | 36 ft. (10.97 m) |
| Transport Width | 13 ft. 6 in. (4.1 m) |
| Transport Height | 11 ft. (3.4 m) |
| Overall Length | 31 ft. (9.4 m) |
| Hitch | Cast Single Lip Cat. IV |
| Wheels - Center Section | 8 Bolt Hubs with 2 7/8 in. (73.1 mm) Slip In Spindles |
| Wheels - Wings | 6 Bolt Hubs with 2 in. (50.8 mm) Spindles |
| Tires - Center Section | (4) 12.5L x 15, (GY-Fl) Load F |
| Tires - Wings | (4) 11 L x 15, 12 Ply |
| Hydraulic Circuits Required | 3 (+1 for Row Marker Kit) |
| Seed Box | All Steel Construction |
| Seed Box Capacity | 15.75 Bushels (555.0 l) Front / 15.75 Bushels (555.0 l) Rear |
| Seed Metering | Standard Micro-Meter Front / Blade Agitator Rear |
| Seed Metering Drive | Independent Electric Seeder Clutches |
| Pulverizer Rollers | Gray Cast Iron with Notched Profile |
| Front Roller (Fixed) | 14.5 in. (368.3 mm) Diameter |
| Rear Roller (Independently Floating) | 10.25 in. (260.4 mm) Diameter |
| Blade Agitator for Rear Seed Box | Standard (Factory Installed) |
| Cage Agitator for Rear Seed Box | Standard |
| Brush Agitator for Rear Seed Box | Optional |
| Front Seed Box Divider Kit | Standard |
| Rear Roller Assembly with Turfmaker Sprockets | Optional |
| Folding Row Marker Kit | Optional |
| Wheel Track Removers - Wings | Standard |
| Coil Tine Track Remover Kit - Center Section | Standard |
| Front Roller Scraper Kit for One Seeder | Optional |
| Electronic Acre Meter Kit | Standard |
| Seed Shaft Monitor Kit | Standard |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | Minimum of 200 HP (149.1 kW) |
| Recommended Operating Speed | 4.5 to 6.0 MPH (7.2 to 9.7 km/h) Dependent on Conditions |
