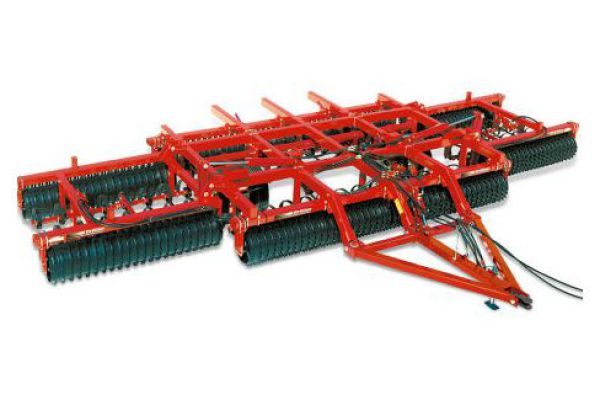

Apply NowBrillion WLS-360, WLCS-360, WCLS-360, WCCS-360
WL Series WLS-360, WLCS-360, WCLS-360, WCCS-360
The WL Series, available in sizes from 21’8” to 30’, fits the needs of larger operations. 20” ductile iron roller wheels on long rank frames provide excellent seedbed preparation in most conditions. All sizes of the WL Series are flat folding for narrow transport width and height.
Features
- Flat Folding Models in Sizes from 21'8" to 30'
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Front Axle
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Rear Axle
- 4" Roller Axles with Sealed Bearings
- External Bearing Mount Allows for Easy Service
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Choice of Conventional "C" Teeth or "S-Tine" Teeth
- Teeth Spaced at 6"
- Maximum Depth of Operation 6"
- Flip-Flop Style Hitch
- Extra Long Hitch Accommodates Dual Wheel Tractors
- Hitch Point at Center Height of Front Roller Axle
- Coil Spring Counter Balance on 21'8" and 25' Models Provides Smooth, Jolt-Free Operation
- Integral Hydraulic Counter Balance on 30' Models
- Mechanical Transport Lock
- Frame Members Made of 4" x 6" Structural Steel Tubing Provide Structural Integrity & Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- 11L x 15-8 Ply Implment Rib Tires on 21'8" and 25' Models
- 12.5L x 16-12 Ply Implement Rib Tires on 30' Models
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Rollers Equipped with Notched Wheels
- Safety Warning Lights
- Powder Coat Paint
Specs
| Model | WLS-360, WLCS-360, WCLS-360, WCCS-360 WLS-360: 15,377 lbs. (6,975 kg) WLCS-360: 13,961 lbs. (6,333 kg) WCLS-360: 14,313 lbs. (6,492 kg) WCCS-360: 13,697 lbs. (6,213 kg) |
| Working Width | 30 ft. 0 in. (9.0 m) |
| Transport Width | 16 ft. 9 in. (5.0 m) |
| Transport Height | 6 ft. 4 in. (1.9 m) |
| Overall Length (Transport) | 19 ft. 10 in. (6.0 m) |
| Road Clearance | 10 in. (254 mm) |
| Pulverizer Wheels - Front | |
| Type of Wheel | WLS-360/WLCS-360: 20 in. (500 mm) Notched Ductile Iron WCLS-360/WCCS-360: 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Wheels | WLS-360/WLCS-360: 88 WCLS-360/WCCS-360: 60 |
| Pulverizer Wheels - Rear | |
| Type of Wheel | WLS-360/WCCS-360: 20 in. (500 mm) Notched Ductile Iron WLCS-360/WCCS-360: 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Wheels | WLS-360/WCLS-360: 89 WLCS-360/WCCS-360: 60 |
| Rear Roller Scrapers | Standard on WLS-360 & WCLS-360 |
| Roller Axle Size | 4 in. (102 mm) |
| Bearing Type | 1.5 in. (38 mm) Square Bore Bearing with Triple Lip Seal |
| Type of Shanks | 12 mm S-Tine Teeth with 1.38 in. (35 mm) Reversible Point or 2.75 in. (70 mm) Shovel |
| Number of Shanks | 59 |
| Nominal Shank Spacing | 6 in. (153 mm) |
| Maximum Shank Depth of Operation | 6 in. (153 mm) |
| Hitch | Pull-Type with Hydraulic Lift |
| Hitch Category | Cat. II or III (Cat. IV Available) |
| Tire Size | (4) 12.5L x 16-14 Ply Tires |
| Hydraulic Circuits Required | 3 (+1 for Rear Hitch) |
| Rear Hitch | Optional |
| Front Roller Scraper Kit (Notched Rollers) | Optional on WLS-360 & WLCS-360 |
| Land Leveler Kit | Optional |
| V-Leveler Kit | Optional |
| Independent Hydraulic Tooth Control | Standard |
| LED Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
