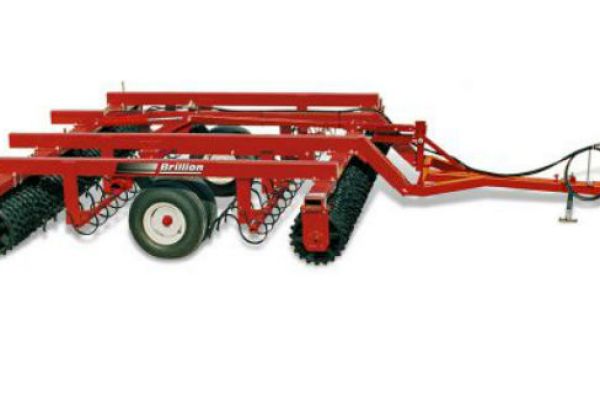

Apply NowBrillion ML-2253, MCL-2253, MLC-2253, MCC-2253
ML Series ML-2253, MCL-2253, MLC-2253, MCC-2253
The ML Series revolutionized the Pulvi-Mulcher industry when it was introduced. Larger diameter 20” ductile iron rollers, which pull easier, and a high clearance frame brought new life to the Pulvi-Mulcher. The longer frames allow more room for residue flow through the machine. Without a doubt, the ML Series has proven... + Read More
Features
- Rigid, Non-Folding Models Available in Sizes from 12'6" to 18'9"
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Front Axle
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Rear Axle
- 4" Roller Axles with Sealed Bearings
- External Bearing Mount Allows for Easy Service
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Choice of Conventional "C" Teeth or "S-Tine" Teeth
- Teeth Spaced at 6"
- Maximum Depth of Operation 6"
- Flip-Flop Style Hitch
- Long Hitch Accommodates Dual Wheel Tractors
- Hitch Point at Center Height of Front Roller Axle
- Spring Loaded Counter Balance Provides Positive Machine Control
- Mechanical Transport Lock
- Frame Members Made of 4" x 6" Structural Steel Tubing Provide Structural Integrity & Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- 9.5L x 15-6 Ply Tires
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Rollers Equipped with Notched Wheels
- Safety Warning Lights
- Powder Coat Paint
Specs
Model | ML-2253, MCL-2253, MLC-2253, MCC-2253 |
Approximate Weight | ML-2253: 8,313 lbs. (3,771 kg) MCL-2253: 8,175 lbs. (3,708 kg) MLC-2253: 7,986 lbs. (3,622 kg) MCC-2253: 7,879 lbs. (3,574 kg) |
Working Width | 18 ft. 9 in. (5.63 m) |
Transport Width | 19 ft. 6 in. (5.85 m) |
Transport Height | 3 ft. 8 in. (1.1 m) |
Overall Length (Transport) | 19 ft. 10 in. (5.95 m) |
Road Clearance | 9 in. (229 mm) |
Pulverizer Wheels - Front | |
Type of Wheel | ML-2253/MLC-2253: 20 in. (500 mm) Notched Ductile Iron MCL-2253/MCC-2253: 20 in. (500 mm) Crowfoot Ductile Iron |
Number of Wheels | ML-2253/MLC-2253: 54 MCL-2253/MLC-2253: 36 |
Pulverizer Wheels - Rear | |
Type of Wheel | ML-2253/MCL-2253: 20 in. (500 mm) Notched Ductile Iron MLC-2253/MCC-2253: 20 in. (500 mm) Crowfoot Ductile Iron |
Number of Wheels | ML-2253/MCL-2253: 55 MLC-2253/MLC-2253: 37 |
Rear Roller Scrapers | Standard on ML-2253 & MCL-2253 |
Roller Axle Size | 4 in. (102 mm) |
Bearing Type | 1.5 in. (38 mm) Square Bore Bearing with Triple Lip Seal |
Type of Shanks | Conventional "C" Teeth |
Number of Shanks | 35 |
Nominal Shank Spacing | 6 in. (153 mm) |
Maximum Shank Depth of Operation | 6 in. (153 mm) |
Hitch | Pull-Type with Hydraulic Lift |
Hitch Category | Cat. II or III |
Tire Size | (4) 9.5L x 15-8 Ply Tires |
Hydraulic Circuits Required | 2 (+1 for Rear Hitch) |
Rear Hitch | Optional |
Front Roller Scraper Kit (Notched Rollers) | Optional on ML-2253 & MLC_2253 |
Land Leveler Kit | Optional |
V-Leveler Kit | Optional |
Independent Hydraulic Tooth Control | Standard |
LED Warning Lights and SMV Emblem | Standard |
Safety Chain Kit | Standard |
Powder Coat Paint | Standard |
Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
