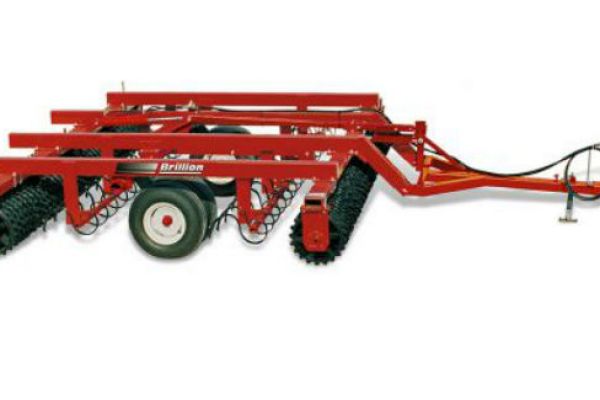

ML Series ML-1803, MCL-1803, MLC-1803, MCC-1803
The ML Series revolutionized the Pulvi-Mulcher industry when it was introduced. Larger diameter 20” ductile iron rollers, which pull easier, and a high clearance frame brought new life to the Pulvi-Mulcher. The longer frames allow more room for residue flow through the machine. Without a doubt, the ML Series has proven... + Read More
Features
- Rigid, Non-Folding Models Available in Sizes from 12'6" to 18'9"
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Front Axle
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Rear Axle
- 4" Roller Axles with Sealed Bearings
- External Bearing Mount Allows for Easy Service
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Choice of Conventional "C" Teeth or "S-Tine" Teeth
- Teeth Spaced at 6"
- Maximum Depth of Operation 6"
- Flip-Flop Style Hitch
- Long Hitch Accommodates Dual Wheel Tractors
- Hitch Point at Center Height of Front Roller Axle
- Spring Loaded Counter Balance Provides Positive Machine Control
- Mechanical Transport Lock
- Frame Members Made of 4" x 6" Structural Steel Tubing Provide Structural Integrity & Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- 9.5L x 15-6 Ply Tires
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Rollers Equipped with Notched Wheels
- Safety Warning Lights
- Powder Coat Paint
Specs
| Model | ML-1803, MCL-1803, MLC-1803, MCC-1803 |
| Approximate Weight | ML-1803: 7,015 lbs. (3,182 kg) MCL-1803: 6,882 lbs. (3,122 kg) MLC-1803: 6,718 lbs. (3,047 kg) MCC-1803: 6,586 lbs. (2,987 kg) |
| Working Width | 15 ft. 2 in. (4.55 m) |
| Transport Width | 15 ft. 9 in. (4.73 m) |
| Transport Height | 3 ft. 8 in. (1.1 m) |
| Overall Length (Transport) | 19 ft. 10 in. (5.95 m) |
| Road Clearance | 9 in. (229 mm) |
| Pulverizer Wheels - Front | |
| Type of Wheel | ML-1803/MLC-1803: 20 in. (500 mm) Notched Ductile Iron MCL-1803/MCC-1803: 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Wheels | ML-1803/MLC-1803: 44 MCL-1803/MCC-1803: 30 |
| Pulverizer Wheels - Rear | |
| Type of Wheel | ML-1803/MCL-1803: 20 in. (500 mm) Notched Ductile Iron MLC-1803/MCC-1803: 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Wheels | ML-1803/MCL-1803: 45 MLC-1803/MCC-1803: 30 |
| Rear Roller Scrapers | Standard on ML-1803 & MCL-1803 |
| Roller Axle Size | 4 in. (102 mm) |
| Bearing Type | 1.5 in. (38 mm) Square Bore Bearing with Triple Lip Seal |
| Type of Shanks | Conventional "C" Teeth |
| Number of Shanks | 29 |
| Nominal Shank Spacing | 6 in. (153 mm) |
| Maximum Shank Depth of Operation | 6 in. (153 mm) |
| Hitch | Pull-Type with Hydraulic Lift |
| Hitch Category | Cat. II or III |
| Tire Size | (4) 9.5L x 15-8 Ply Tires |
| Hydraulic Circuits Required | 2 (+1 for Rear Hitch) |
| Rear Hitch | Optional |
| Front Roller Scraper Kit (Notched Rollers) | Optional on ML-1803 & MLC-1803 |
| Land Leveler Kit | Optional |
| V-Leveler Kit | Optional |
| Independent Hydraulic Tooth Control | Standard |
| LED Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
