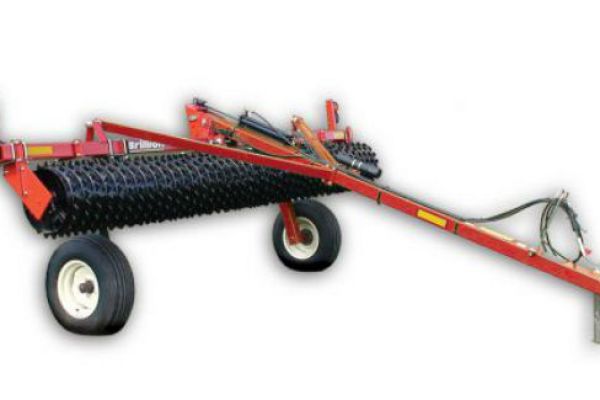

Apply NowBrillion PT14
PT Series, Rotating Frame Transport Models PT14
The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.
Features
PT Series, Rotating Frame Transport Models
- Working Widths From 10’ to 20’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron
- 20” Optimizer Ductile Iron
- 20” Crowfoot Ductile Iron
- 22” V-Style Ductile Iron
Specs
| Product Attributes | PT14 |
| Approximate Weight | |
| (PDTS) 20" Notched Ductile Iron Wheels with Scrapers | 2,971 lbs. (1,348 kg) |
| (PDT) 20" Notched Ductile Iron Wheels | 2,815 lbs. (1,277 kg) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 2,657 lbs. (1,205 kg) |
| (POT) 20" Optimizer Ductile Iron Wheels | 3,152 lbs. (1,430 kg) |
| (PVTS) 22" V-Style Ductile Iron Wheels with Scrapers | 3,400 lbs. (1,542 kg) |
| (PVT) 22" V-Style Ductile Iron Wheels | 3,073 lbs. (1,394 kg) |
| Working Width | 14 ft. 0 in. (4.2 m) |
| Transport Width | 15 ft. 2 in. (4.5 m) |
| Transport Height | 6 ft. 0 in. (1.8 m) |
| Overall Length, Transport | 12 ft. 6 in. (3.8 m) |
| Overall Length, Operation | 17 ft. 4 in. (5.3m) |
| Number of Pulverizer Wheels | |
| (PDT) 20" Notched Ductile Iron Wheels | 42 |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 28 |
| (POT) 20" Optimizer Ductile Iron Wheels | 28 |
| (PVT) 22" V-Style Ductile Iron Wheels (6 in. Spacing) | 28 |
| Axle Size | |
| (PDT) 20" Notched Ductile Iron Wheels | 8 in. (203 mm) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 8 in. (203 mm) |
| (POT) 20" Optimizer Ductile Iron Wheels | 8 in. (203 mm) |
| (PVT) 22" V-Style Ductile Iron Wheels | 4.5 in. (114 mm) |
| Roller Center Bearing | |
| (PDT) 20" Notched Ductile Iron Wheels | No |
| (PCT) 20" Crowfoot Ductile Iron Wheels | No |
| (POT) 20" Optimizer Ductile Iron Wheels | No |
| (PVT) 22" V-Style Ductile Iron Wheels | Yes |
| Drawbar | Pull-Type with Hydraulic Transport |
| Tire Size | 9.5L x 15-8 Ply Implement Rib |
| Scraper Kits | Standard on Models with 'S'; Optional on PDT and PVT Models |
| Rear Hitch Kit | Optional |
| Dual Wheel Kit | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 60 HP (44.8 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
