Apply NowBrillion PP18

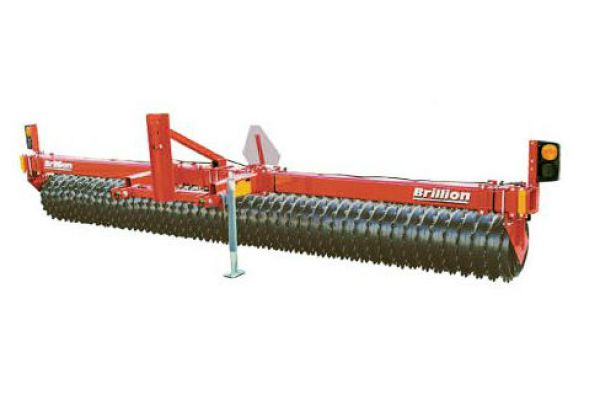

PP Series, Three-Point Hitch Models PP18
The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.
Features
PP Series, Three-Point Hitch Models
- Working Widths From 5’ to 20’
- Cat. I Three-Point Hitch on 5' to 7' Models
- Cat. I, II Three-Point Hitch on 8' to 20' Models
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 20' Models
- 16" Notched Gray Iron - 5' to 8' Models
- 16" Crowfoot Gray Iron - 5' to 8' Models
- 20" Optimizer Ductile Iron - 10' to 20' Models
Specs
| Product Attributes | PP18 |
| Approximate Weight | |
| (PPM) 16" Notched Gray Iron Wheels | N/A |
| (PPD) 20" Notched Ductile Iron Wheels | 2,769 lbs. (1,246 kg) |
| (PPC) 16" Crowfoot Gray Iron Wheels | N/A |
| (PPO) 20" Optimizer Ductile Iron Wheels | 2,921 lbs. (1,314 kg) |
| Working Width | 18 ft. 0 in. (5.4 m) |
| Transport Width | 19 ft. 2 in. (5.75 m) |
| Transport Height | Dependent Upon Tractor |
| Overall Length | 4 ft. 3 in. (1.27 m) |
| Number of Pulverizer Wheels | |
| (PPM) 16" Notched Gray Iron Wheels | N/A |
| (PPD) 20" Notched Ductile Iron Wheels | 54 |
| (PPC) 16" Crowfoot Gray Iron Wheels | N/A |
| (PPO) 20" Optimizer Ductile Iron Wheels | 36 |
| Axle Size | |
| (PPM) 16" Notched Gray Iron Wheels | N/A |
| (PPD) 20" Notched Ductile Iron Wheels | 4.5 in. (114 mm) |
| (PPC) 16" Crowfoot Gray Iron Wheels | N/A |
| (PPO) 20" Optimizer Ductile Iron Wheels | 4.5 in. (114 mm) |
| Three-Point Hitch | Cat. II Free Link; Cat. II, IIIN Quick Coupler |
| Pull-Type Hitch | N/A |
| Scraper Kits | Optional for PPD Series |
| S-Tine Track Remover Kit | Optional |
| Rear Hitch | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 90 HP (67.2 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
