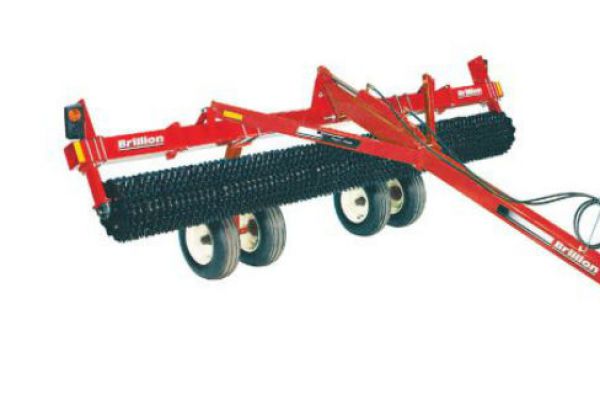

Apply NowBrillion PPF16B12
PFT Series, Floating Ring Models PPF16B12
The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.
Features
PFT Series, Floating Ring Models
- Floating Ring Design Best Suited for Use with Companion Primary Tillage Tool
- Cat. II, III Three-Point Hitch Models Available in Sizes from 6' to 18'
- Pull-Type Models Available in Sizes from 10' to 22'
- 20" Ductile Iron Rings with 14" Inside Diameter
Specs
| Model | PPF16B12 |
| Approximate Weight | 3,924 lbs. (1,765 kg) |
| Working Width | 16 ft. 0 in. (4.8 m) |
| Transport Width | 17 ft. 4 in. (5.2 m) |
| Transport Height | Dependent Upon Tractor |
| Overall Length, Transport | 4 ft. 3 in. (1.27 m) |
| Overall Length, Operation | 4 ft. 3 in. (1.27 m) |
| Main Frame Structure | 7 in. x 7 in. (178 mm x 178 mm) |
| Pulverizer Wheels | 20 in. (500 mm) Ductile Iron Rings |
| Number of Wheels | 80 |
| Axle Size | 12 in. (305 mm) |
| Tire Size | N/A |
| Hitch | Cat. II, III Three-Point Hitch |
| Dual Wheel Kit | N/A |
| Single Wheel Kit | N/A |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | N/A |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 90 HP (67.2 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
