Brillion PPF12B12

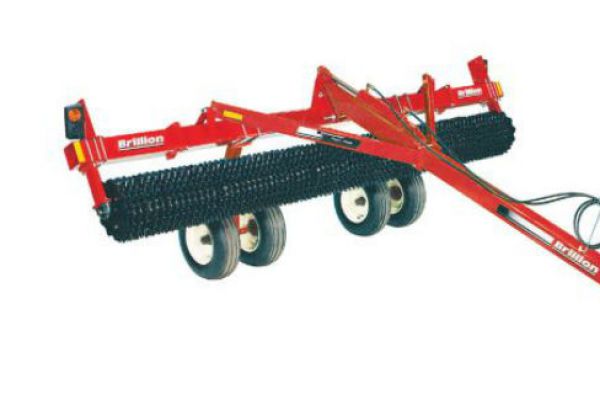

Brillion PPF12B12 for sale at Coastal Tractor, California

Double tap to zoom

Brillion PPF12B12 for sale at Coastal Tractor, California

PFT Series, Floating Ring Models PPF12B12

The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.



Features

PFT Series, Floating Ring Models

  • Floating Ring Design Best Suited for Use with Companion Primary Tillage Tool
  • Cat. II, III Three-Point Hitch Models Available in Sizes from 6' to 18'
  • Pull-Type Models Available in Sizes from 10' to 22'
  • 20" Ductile Iron Rings with 14" Inside Diameter

Specs

Model PPF12B12
Approximate Weight 3,056 lbs. (1,375 kg)
Working Width 12 ft. 0 in. (3.6 m)
Transport Width 13 ft. 4 in. (4.1 m)
Transport Height Dependent Upon Tractor
Overall Length, Transport 4 ft. 3 in. (1.27 m)
Overall Length, Operation 4 ft. 3 in. (1.27 m)
Main Frame Structure 7 in. x 7 in. (178 mm x 178 mm)
Pulverizer Wheels 20 in. (500 mm) Ductile Iron Rings
Number of Wheels 60
Axle Size 12 in. (305 mm)
Tire Size N/A
Hitch Cat. II, III Three-Point Hitch
Dual Wheel Kit N/A
Single Wheel Kit N/A
LED Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit N/A
Powder Coat Paint, Red Standard
Horsepower Requirements 75 HP (56 kW)
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
