Apply NowBrillion SCP-33 / SCPH-33

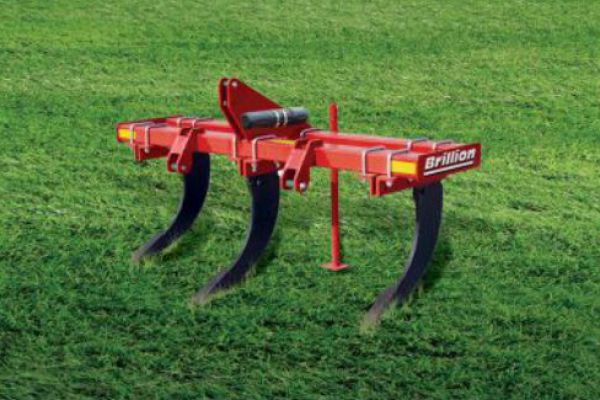

Sub Soiler SCP-33 / SCPH-33
The Brillion line of Sub Soilers includes 1, 2 or 3 shank models. Laser cut, shear bolt parabolic shanks with 2” flat points and wear strips make up the ground engaging end of a very basic tillage machine.
Features
Basic Machine/Basic Tillage
The Brillion Sub Soilers are built on an all welded one-piece frame. The shanks bolt to a set of adjustable angle irons that are fastened to the underside of the frame. The rear shank mount bolt is the pivot; the front shank mount bolt is the shear bolt. When an obstruction is encountered, the front bolt will shear and the shank will trip rearward to clear the obstruction. The machine must then be raised out of the soil, the shank returned to position and a new shear bolt installed. This is a very user friendly procedure to minimize downtime in the field. The Sub Soiler is designed to operate at a maximum depth of 16”. Since maximum horsepower requirements are limited to 120 HP, these units are designed for small to medium size operations. These machines are close coupled to the tractor with a three-point hitch.
Small Machines/Big Capacity
Brillion Sub Soilers are small in size. However, they have the capacity to handle compaction issues just like many other sophisticated units on the market costing much more. Many specialty producers rely on Brillion Sub Soilers for vineyard and orchard work. Others use these machines as entry level compaction control units. It’s all about meeting expectations! Brillion can do it!
Simple in Design, But Built Tough to Shatter Hardpans
•One, Two and Three Shank Models Available
•Three-Point Hitch - Cat. I Free Link on SCP1
•Three-Point Hitch - Cat. II Free Link on SCP2
•Three-Point Htich - Cat. II Free Link; Cat II, IIIN Quick Coupler Hitch on Double Frame Models
•5" x 7" Frame Structure on Single Bar Models
•4" x 6" Frame Structure on Double Bar Models
•Parking Stand
•29" Under Frame Clearance when Equipped with Standard Shanks
•35" Under Frame Clearance with Equipped with High Clearance Shanks
•Heavy-Duty Laser Cut Parabolic Shanks
•Shear Bolt Protected Shanks
•0.625" x 3.75" Shear Bolt
•Shank Mounts Easily Moveable on Tool Bar for Infinite Shank Spacings
•Maximum of 16" Working Depth
•2 1/2" Flat Steel Points and Flat Reversible Wearstrips Standard Equipment
•Powder Coat Paint
Specs
| Model | SCP-33 / SCPH-33 |
| Approximate Weight | 837 lbs. (381 kg) / 868 lbs. (395 kg) |
| Working Widtd | 80 in. (2.03 m) |
| Transport Widtd | 90 in. (2.29 m) |
| Transport Height | 46 in. (1.17 m) |
| Number of Shanks | 3 |
| Shank Type | Rigid Parabolic witd Shear Bolt |
| Shear Bolt Size | .625 in. x 3.75 in. (15.875 x 93.75 mm) |
| Shank Spacing | Infinite on Tool Bar |
| Shank Working Deptd | Maximum of 16 in. (400 mm) |
| Under Frame Clearance | 29 in. (725 mm) / 35 in. (875 mm) |
| Points Available | 2.5 in. (62.5 mm) Flat Steel Point |
| Wearstrips Available | Flat Wearstrip |
| Frame Structure | 4 in. x 6 in. x .25 in. (100 x 150 x 6.35 mm) |
| Three-Point Hitch | Cat. II Free Link; Cat. II, III N Quick Coupler Hitch |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 20 to 40 HP (14.9 to 29.8 kW) per Shank [Horsepower not to exceed 40 HP per Shank] |
| Recommended Operating Speed | 4 to 6 MPH (6.43 to 9.65 km/h) |
