Apply NowBrillion HSBA71-1

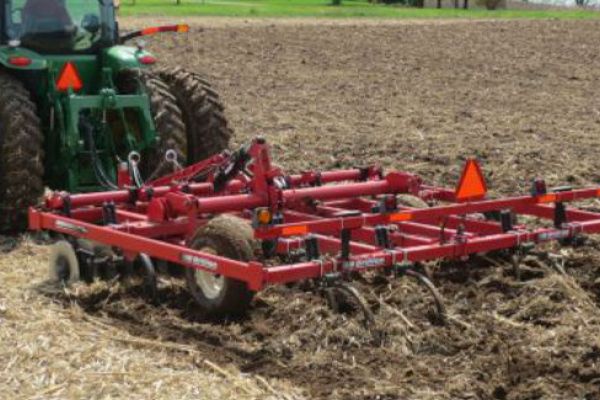

Soil Builder HSBA71-1
The HSB series is the next generation of Soil Builders. Many of the proven components and features from the CD series have been incorporated into the HSB models. The coulter gangs have remained unchanged other than they are hydraulically controlled. The chisel shanks are mounted to a 3-rank frame for added residue capa... + Read More
Features
Advanced Solutions to High Residue Problems
- 5 to 13 Shank Rigid Frame Models Available
- Flip-Flop Style Hitch
- A-Frame Drawbar
- Ratchet Jack Frame Leveling
- Single Point Depth Control
- 4" x 4" Square Tube Weighted Frame
- 29" Under Frame Clearance
- Walking Tandem Axles Provide for a Smooth Ride (Model Dependent)
- 20" Coulter Blades Spaced at 7.5"
- 7.5" Solid Cast Iron Spools Provide Extra Weight to Cut Through the Toughest Residue
- 1.5" Square Gang Bolt Prevents Coulters from Sliding in Wet Conditions
- Hydraulic Depth Control for Coulters (Model Dependent)
- Dual Nested Spring Shanks Trip up to 5.5"
- Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs.
- Maximum Operating Depth is 10"
- One Piece 4" Twisted Shovels Standard Equipment
- Safety Warning Lights
- Powder Coat Paint
Specs
| Model | HSBA71-1 |
| Approximate Weight | 4,879 lbs. (2,213 kg) |
| Working Width | 8 ft. 9 in. (2.67 m) |
| Transport Width | 9 ft. 3 in. (2.82 m) |
| Transport Height | 5 ft. 7 in. (1.70 m) |
| Overall Length | 19 ft. 3 in. (5.87 m) |
| Number of Coulter Blades | 15 |
| Coulter Blade Diameter | 20 in. (508 mm) |
| Coulter Blade thickness | 7 ga. |
| Coulter Blade Spacing | 7.5 in. (191 mm) |
| Coulter Bearings | Self-Aligning Flange Type |
| Coulter Protection | Compression Coil Spring |
| Coulter Gang Bolt | 1.5 in. (38 mm) Square |
| Number of Shanks | 7 |
| Shank Mount | Dual Nested Spring |
| Shank Type | Parabolic |
| Shank Spacing | 15 in. (381 mm) |
| Shank Working Depth | Maximum of 10 in. (254 mm) |
| Spring Pressure/Trip Resistance | 550 lbs. to 825 lbs. (248 kg to 371 kg) |
| Chisel Points Available | 4 in. (102 mm) Twisted Shovels |
| Under Frame Clearance | 29 in. (737 mm) |
| Frame Structure | 4 in. x 4 in. x .25 in. (102 x 102 x 6.35 mm) |
| Rock-shaft Pivot Bearings | Two Piece Cast Iron |
| Transport Axle Type | Single Tire |
| Main Frame Cylinders | 3.5 in. x 16 in. (89 x 406 mm) |
| Main Frame Cylinder Control | External Depth Stop |
| Coulter Depth Cylinders | 3 in. x 8 in. (76 x 203 mm) |
| Coulter Depth Cylinder Control | Depth Control Segments |
| Tires | (2) 11L x 15-8 Ply |
| Hitch Pin Hole Diameter | 1.563 in. (40 mm) Flip-Flop Style Hitch |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 15 to 20 HP (11 to 15 kW) per Shank |
| Recommended Operating Speed | 5 to 6.5 MPH (8 to 10.5 km/h) |
