Apply NowBrillion CPP-7

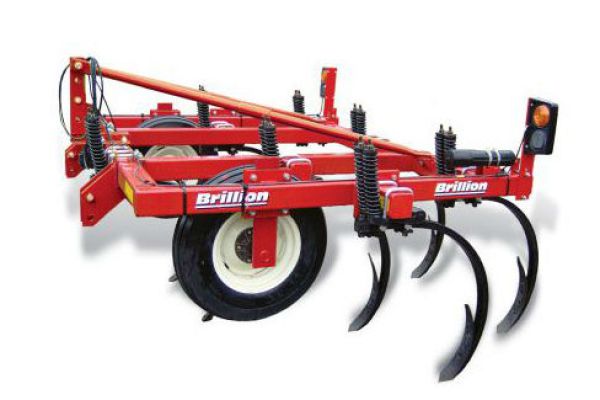

Chisel Plow CPP-7
The 3-Bar Mounted Chisel Plow is available in sizes from 7 to 12 shanks, which are spaced on 12” centers for optimum performance. These models can be equipped with a choice of three different shank styles in both rigid and dual nested spring resets. The heavy-duty three-point hitch allows for a short coupled machine th... + Read More
Features
Back to the Basics - The Ideal Conservation Tool
- Five to Twelve Shank Three-Point Hitch Models Available
- Two and Three Bar Basic Frame Configurations
3-Bar Mounted Models
- Three-Point Hitch - Cat. II, III Free Link
- Three-Point Hitch - Cat. II, III, IIIN Quick Coupler Hitch
- All Welded Steel 4" x 4" x .25" Frame
- Optional Manual Adjust Gauge Wheels are Infinitely Adjustable
- 27.5" Under Frame Clearance When Equipped with 26" Shanks
- 33.5" Under Frame Clearance When Equipped with 32" Shanks
- Dual Nested Spring Shank or Rigid Shank Assemblies
- Spring Shank Assemblies Trip Up to 5.5"
- Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs.
- Three Shank Styles Available
- 2" Reversible Points or 3" Reversible Twisted Points Available
- Safety Warning Lights
- Powder Coat Paint
Specs
| Model | CPP-7 |
| Approximate Weight | 604 lbs. (272 kg) |
| Working Width | 7 ft. 0 in. (2.1 m) |
| Transport Width | 7 ft. 6 in. (2.25 m) |
| Transport Height | 4 ft. 8 in. (1.4 m) |
| Overall Length | 8 ft. 0 in. (2.4 m) |
| Number of Shanks | 7 |
| Shank Mount | Rigid or Dual Nested Spring |
| Shank Size | 1 in. x 2 in. x 26 in. (25.4 x 50.8 x 660 mm) 1.25 in. x 2 in. x 32 in. (31.3 x 50.8 x 813 mm) 1.25 in. x 2 in. x 26 in. (31.3 x 50.8 x 660 mm) |
| Shank Spacing | 12 in. (300 mm) |
| Shank Working Depth | Maximum 12 in. (300 mm) |
| Spring Pressure / Trip Resistance | 550 lbs. to 825 lbs. (248 kg to 371 kg) |
| Shank Trip Height | 5.5 in. (138 mm) |
| Chisel Points Available | 2 in. (50.8 mm) Reversible Point or 3 in. (76.2 mm) Reversible Twisted Point |
| Under Frame Clearance | 27.5 in. or 33.5 in. (688 or 838 mm) |
| Frame Structure | 4 in. x 4 in. x .25 in. (100 x 100 x 6.35 mm) |
| tdree-Point Hitch | Cat. II, III Free Link; Cat. II, III, IIIN Quick Coupler |
| Safety Warning Lights & SMV Emblem | Standard |
| Powder Coat Paint, Red | Standard |
| Optional Equipment | Manual Adjust Gauge Wheel Kit Shank and Clamp Assemblies Frame Extension Kits |
| Horsepower Requirements | 10 to 15 HP (8 to 11 kW) per Shank |
| Recommended Operating Speed | 4 to 6 MPH (6.43 to 9.65 km/h) |
