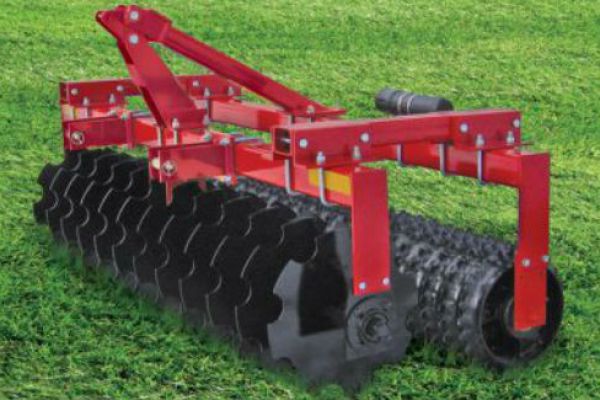

Seedbed Mulch Tucker SMT-6

The Brillion Seedbed Mulch Tucker tucks and locks mulch in place over newly seeded areas.

6' & 8' Models Available
Offered with Both Tucker & Pulverizer Axles or with Tucker Axle Only
Three-Point Hitch - Cat. I Free Link on 6' Models
Three-Point Hitch - Cat. I, II Free Link; Cat. I, II Quick Coupler Hitch on 8' Models
Floating Top Link on 8' Models to Better Accomodate Uneven Terrain
Reversible Hitch to Allow Machine to Operate in Either Direction
4" x 4" Main Frame Members
Bolted Construction
20" Tucker Blades Spaced at 8"
1 1/2" Square Arbor Bolt on Tucker Axle with Triple Sealed Self-Aligning Bearings
16" Gray Iron Pulverizer Wheels on Pulverizer Axle
4" Pipe Axle with Triple Sealed Bearings
Powder Coat Paint

Model	SMT-6
Approximate Weight	1,340 lbs. (603 kg)
Working Width	6 ft. 0 in. (1.8 m)
Transport Width	6 ft. 8 in. (2.0 m)
Transport Height	Dependent Upon Tractor
Road Clearance	Dependent Upon Tractor
Overall Length	3 ft. 10 in. (1.15 m)
Frame Structure	4 in. x 4 in. (254 mm x 254 mm)
Pulverizer Wheels	16 in. (406 mm) Notched Gray Iron
Number of Wheels	18
Axle Size - Pulverizer	4 in. (100 mm)
Pulverizer Bearings	Triple Sealed
Tucker Wheels	20 in. x .1875 in. (508 mm x 47 mm)
Number of Tucker Wheels	9
Axle Size - Tucker	1.5 in. (38.1 mm) Square
Tucker Bearings	Triple Sealed Self-Aligning
Three-Point Hitch	Cat. I Free Link
SMV Emblem	Standard
Powder Coat Paint, Red	Standard
Horsepower Requirements	35 HP (26.88 kW) and up
Recommended Operating Speed	3 to 6 MPH (5 to 10 km/h)
