Apply NowBrillion FSC-1806
Flail Shredder FSC-1806

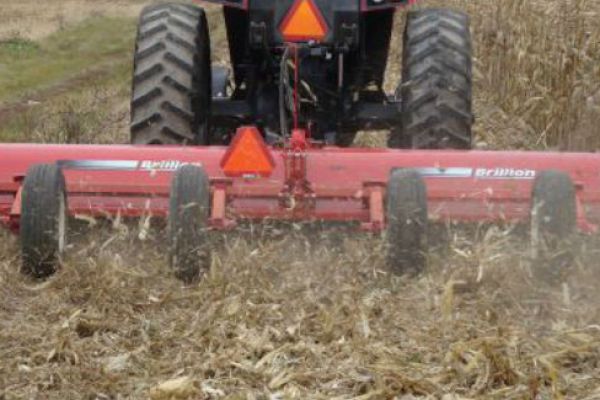

Brillion Flail Shredders cut and shred residue with ease. Brillion Flail Shredders are available in 12’ and 15’ models. Offered in both 540 and 1000 RPM PTO drives, these machines can be used on a wide variety of tractor sizes and models.
Features
Cut & Shred with Ease
- 12' & 15' Sizes Available
- Short Coupled Adjustable Hitch
- Leveling Ratchet Jack
- Heavy-Duty PTO Drive (540 or 1000 RPM Models Available) with Over Running Clutch
- Fully Enclosed Drive Lines and Belts
- Twin Triple Matched Belt Rotor Drives
- End Drive Shields are Ventilated to Keep the Belt Drive Running Cool
- 1/4" Thick Shroud
- Rubber Shields Contain Debris Under the Hood
- 3" x 8" Hydraulic Cylinder and Hoses Standard Equipment
- Equipped with 9.5L x 15-6 Ply Tires
- 12' Models Feature Two Wheel Kits
- 15' Models Feature Four Wheel Kits
- Safety Warning Lights
Specs
| Model | FSC1806 |
| Approximate Weight | 2,833 lbs. (1,275 kg) |
| Working Width | 15 ft. 0 in. (4.5 m) |
| Transport Width | 16 ft. 1 in. (4.83 m) |
| Transport Height | Dependent on Tractor Hitch Position |
| Overall Length | 9 ft. 8 in. (2.9 m) |
| Drive Line | 540 RPM |
| Gear Box | 180 HP (138.24 kW) |
| Over Running Clutch | Standard |
| Constant Velocity PTO Shaft | N/A |
| Rotor RPM | 1,630 RPM |
| Rotor SFM (Surface Feet per Minute) | 10,300 SFM (3,139 SMM) |
| Knife Type | Cup Type |
| Hitch | Pull-Type With Hydraulic Lift |
| Tire Size | 9.5L x 15-6 Ply Implement Rib |
| Auxiliary Wheel Kit | Optional* |
| Center Cut Kit | Optional |
| Hydraulic Cylinder | Standard |
| Cylinder Hose Kit | Standard |
| Safety Warning Lights and SMV Emblem | Standard |
| Safety Chain KIt | Standard |
| Horspower Requirements | 5 to 10 HP per ft. (3.84 to 7.68 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
