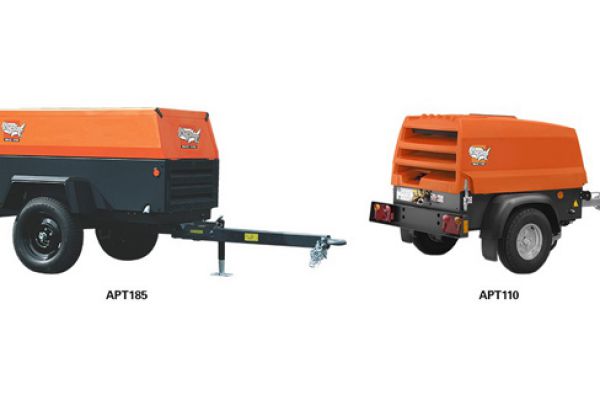

APT Portable Compressors APT 185 KDU T4

With strong undercarriages and heavy-gauge bodies, APT portable compressors
are robust and durable. Just pull one to the worksite and get busy.

Extremely reliable Kubota diesel engines
Ultra-efficient oil-injected air end
All air outlets at rear of machine for ease of use
Easy to service with great access to filters, engine and air receivers
Trailer-mounted with road lights as standard
Options include cold weather kits, aftercoolers, fine air filters, and more on select models

Model	APT 185 KDU T4
Free Air Delivery - CFM	185
Working Pressure - psi (Bar	100
Pressure Range - psi (Bar)	58-125 (4-8.6)
Discharge Outlets	1 x 1-1 ⁄4" NPT
Oil Capacity - gal. (L)	2 (7.6)
Engine Make	Kubota
Model	V2403-CR-E4B
Displacement - L	2.4
Cylinders	4
EPA Tier	Tier 4 Final
HP	49
Rated Speed (High) - rpm	2,700
Rated Speed (Low) - rpm	1,600
Fuel Tank Capacity - gal. (L)	20 (75)
Fuel Consumption @ 100% Load - gal./hr (L/hr)	2.7 (10.2)
Fuel Autonomy @ 100% Load - Hours	8
Sound Pressure Level @ 23' (7m) @ 75% Load - dB(A)	76
Trailer Dimensions (L x W x H) - in.	N/A
Weight (Wet) - lbs. (kg)	N/A
Support Mounted (L x W x H) - in	84 x 34 x 57
Weight (Wet) - lbs. (kg)	2,060 (935)
